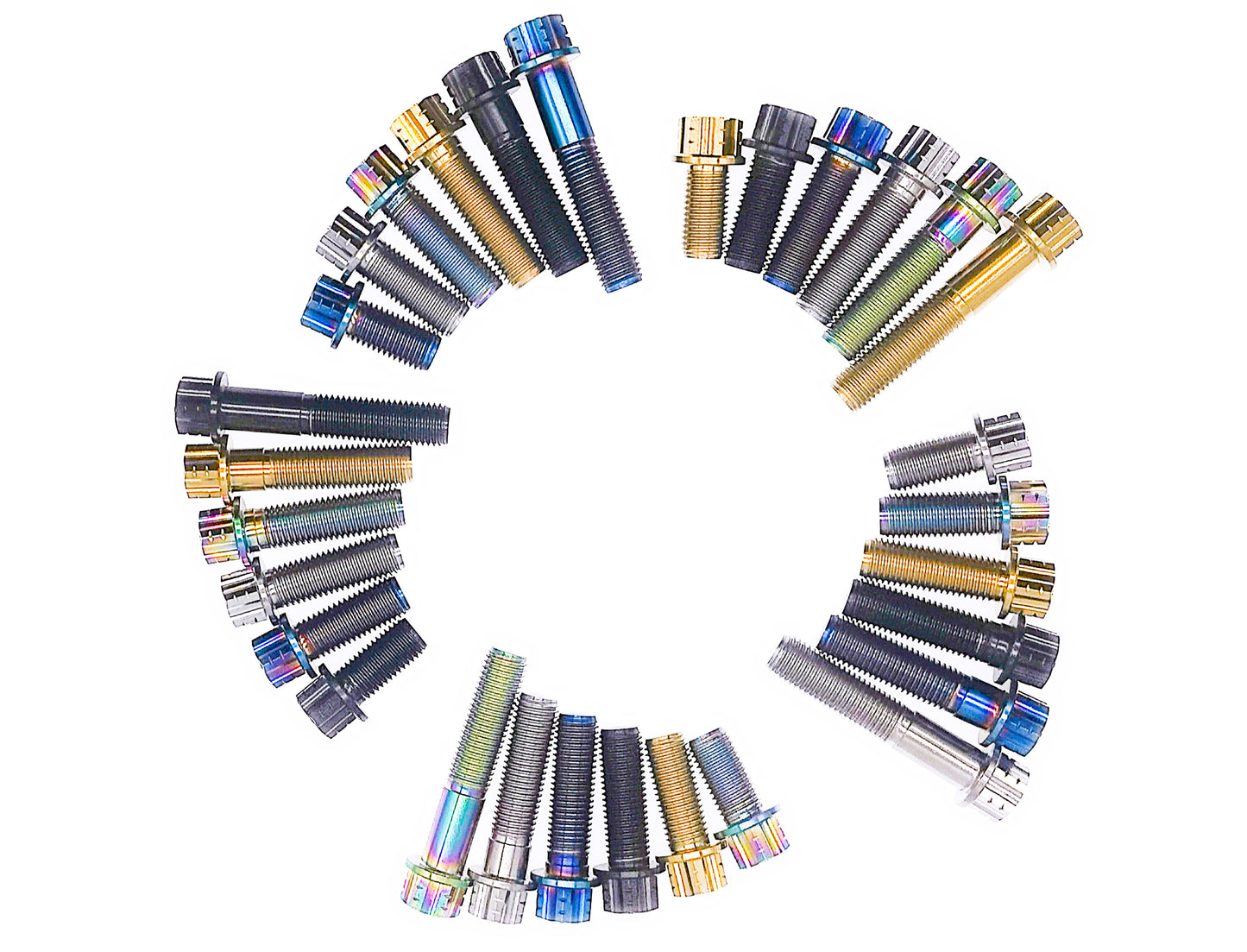

M10 × 1.25 flange-head Torx bolt with a T50 drive. This Tianswer bolt is listed in Grade 5 Ti-6Al-4V (TC4) titanium alloy and offered in lengths from 20 to 70 mm. The 1.25 mm thread pitch is not interchangeable with the separate M10 × 1.5 listing.
Specifications

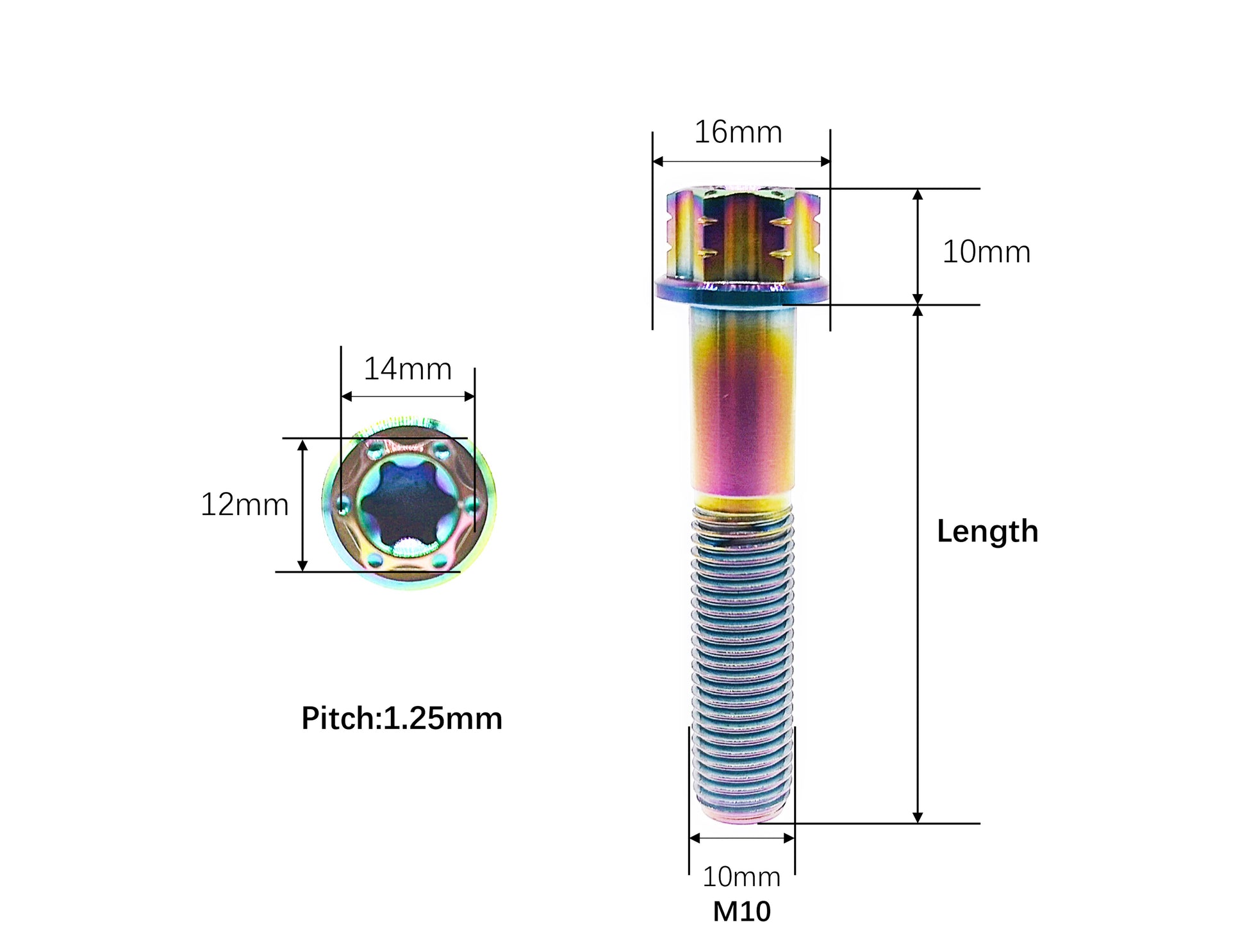

Thread: M10 × 1.25 mm
Lengths: 20, 25, 30, 35, 40, 45, 50, 55, 60, 65 and 70 mm
Head diameter: 16 mm; head height: 10 mm
Drive: Torx T50
Colors: titanium, gold, rainbow, burn blue and black
Sold individually
Choose by original hardware
Compare thread pitch, length, shank configuration, flange-bearing area and component clearance. The original listing distinguishes fully threaded sizes up to 30 mm from longer variants. For motorcycle engine or axle use, confirm the equipment maker's approved fastener and tightening procedure; this description makes no universal application claim. To prevent tool cam-out and drive stripping on high-torque assemblies, consult our Titanium Fastener Drive Stripping & Failure Guide.
FAQ
Can I use this in an M10 × 1.5 threaded hole? No. Never force mismatched pitches.
