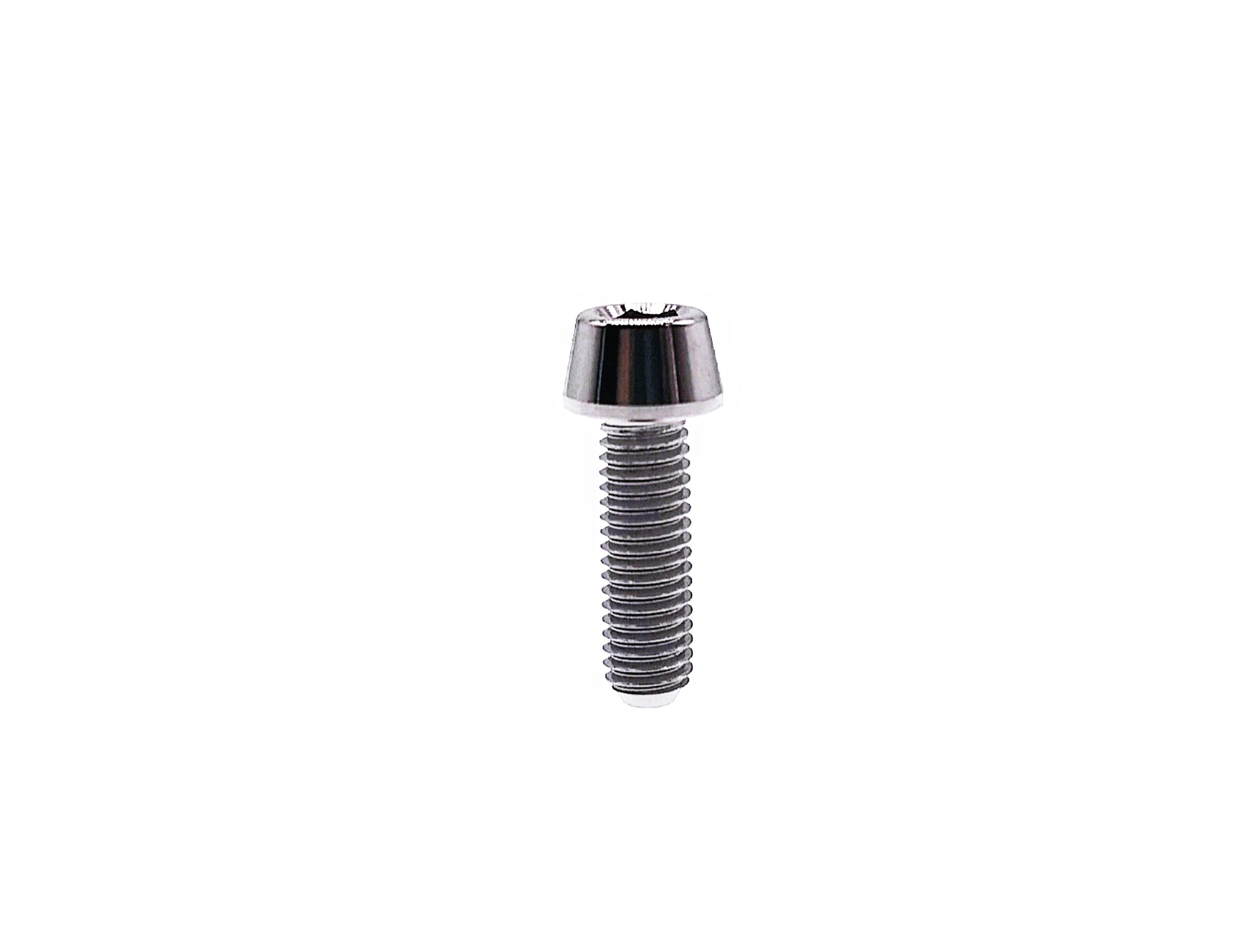

Tapered-head M5 hex-socket bolt in a broad length range. Listed in Grade 5 Ti-6Al-4V (TC4) titanium alloy, this Tianswer bicycle screw has an M5 × 0.8 thread and 4 mm hex-socket drive. Choose the size by your component's original fastener, not by M5 diameter alone.

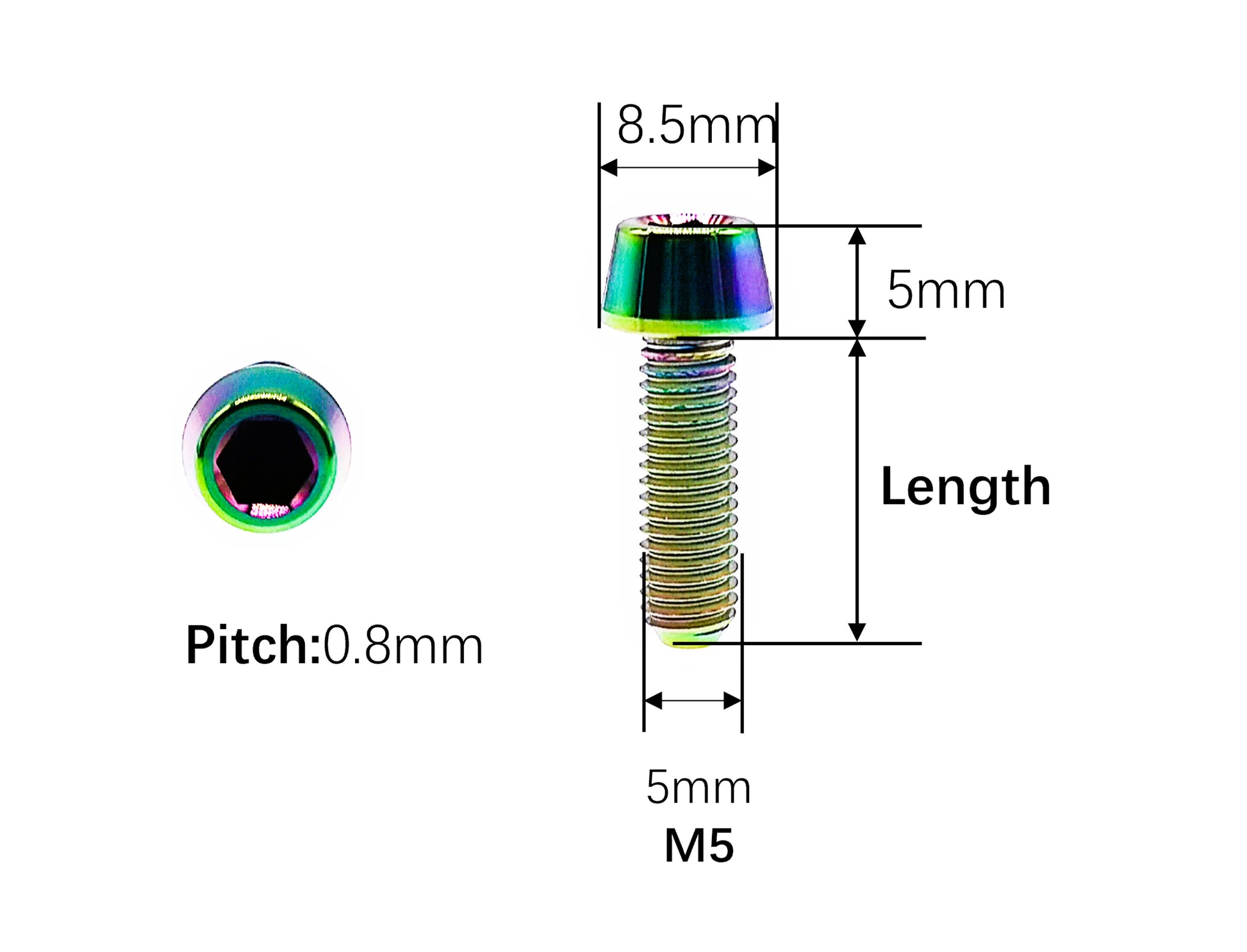

Specifications
Thread: M5 × 0.8 mm
Lengths: 10, 12, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65 and 70 mm
Head diameter: 8.5 mm; head height: 5 mm
Drive: 4 mm hex key

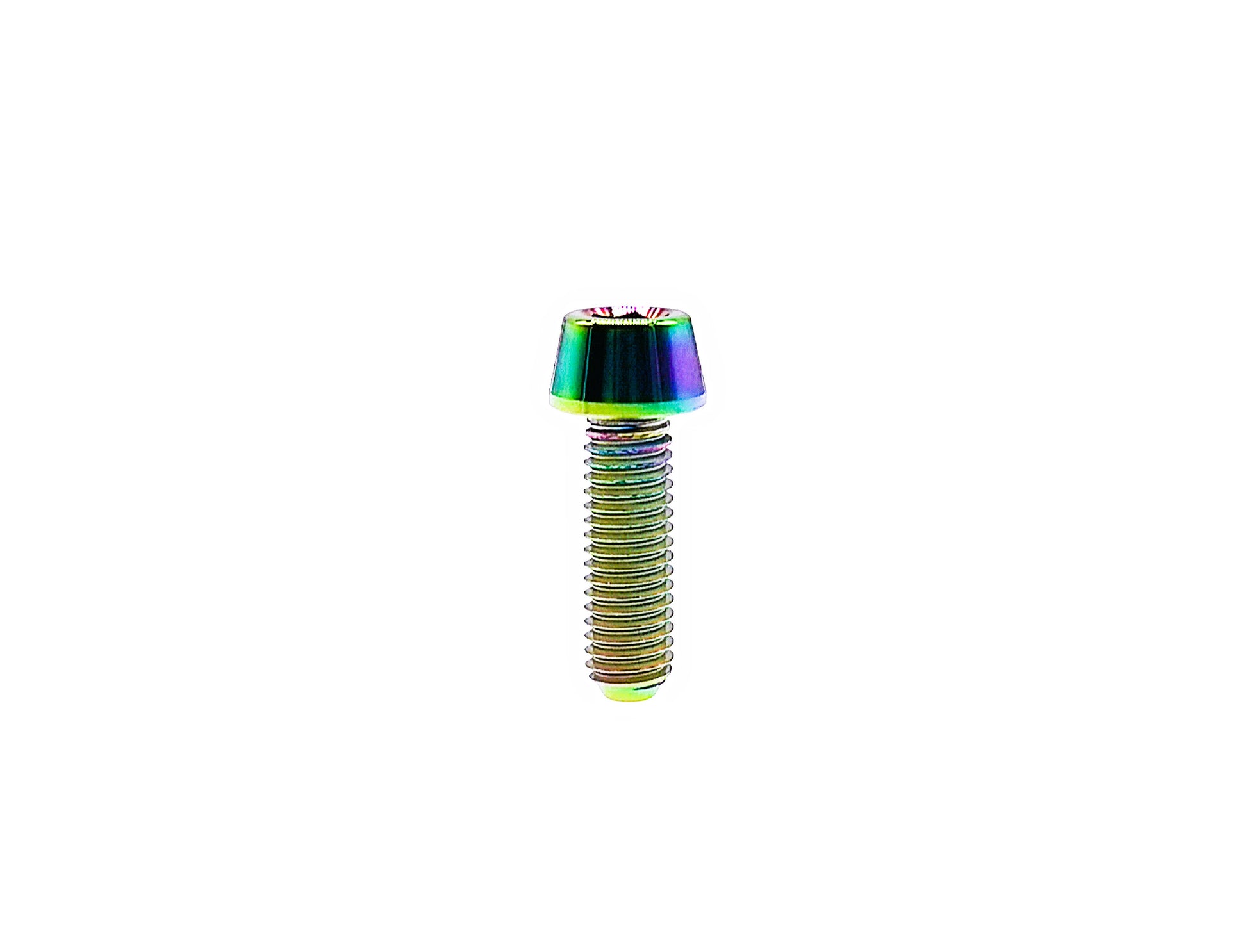

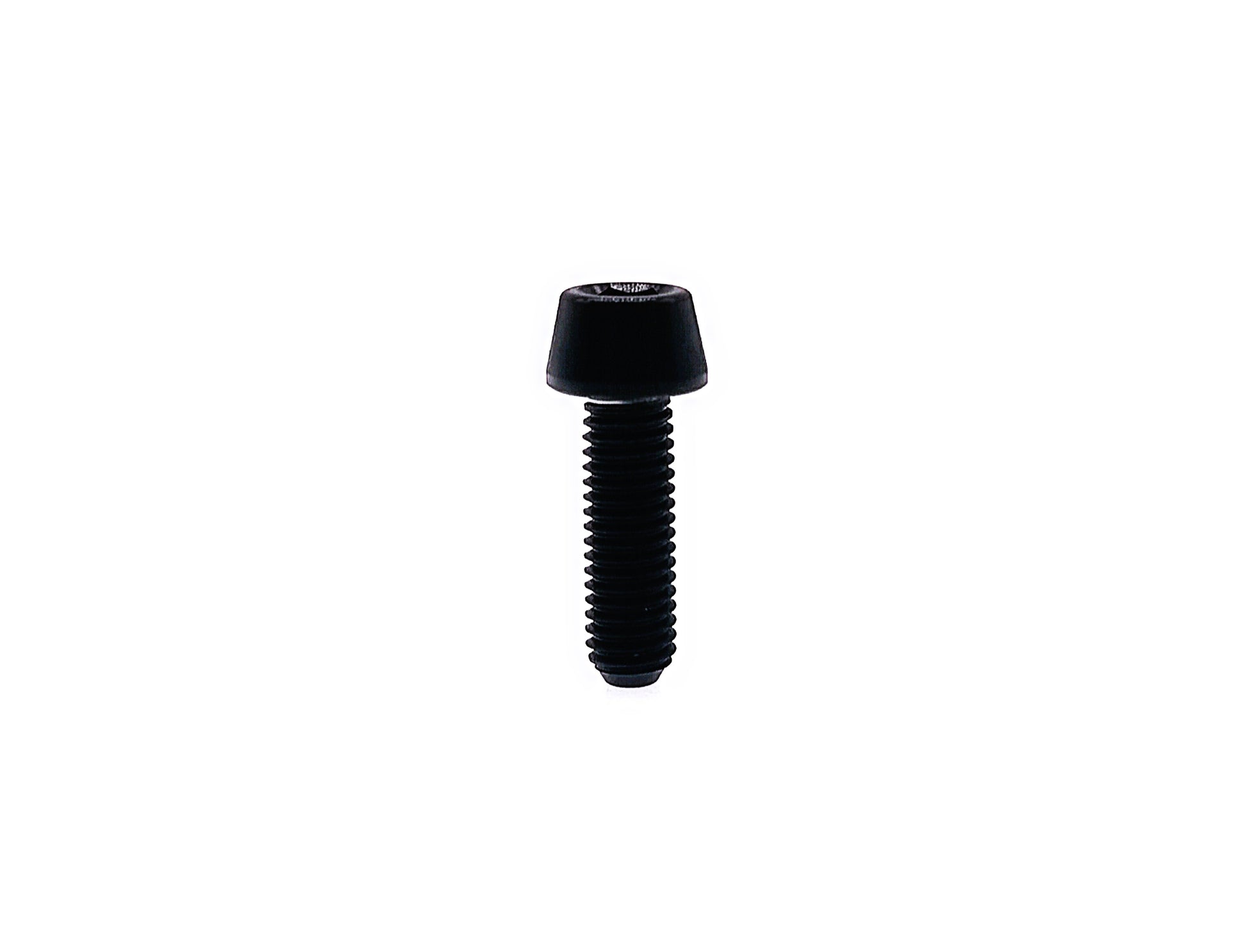

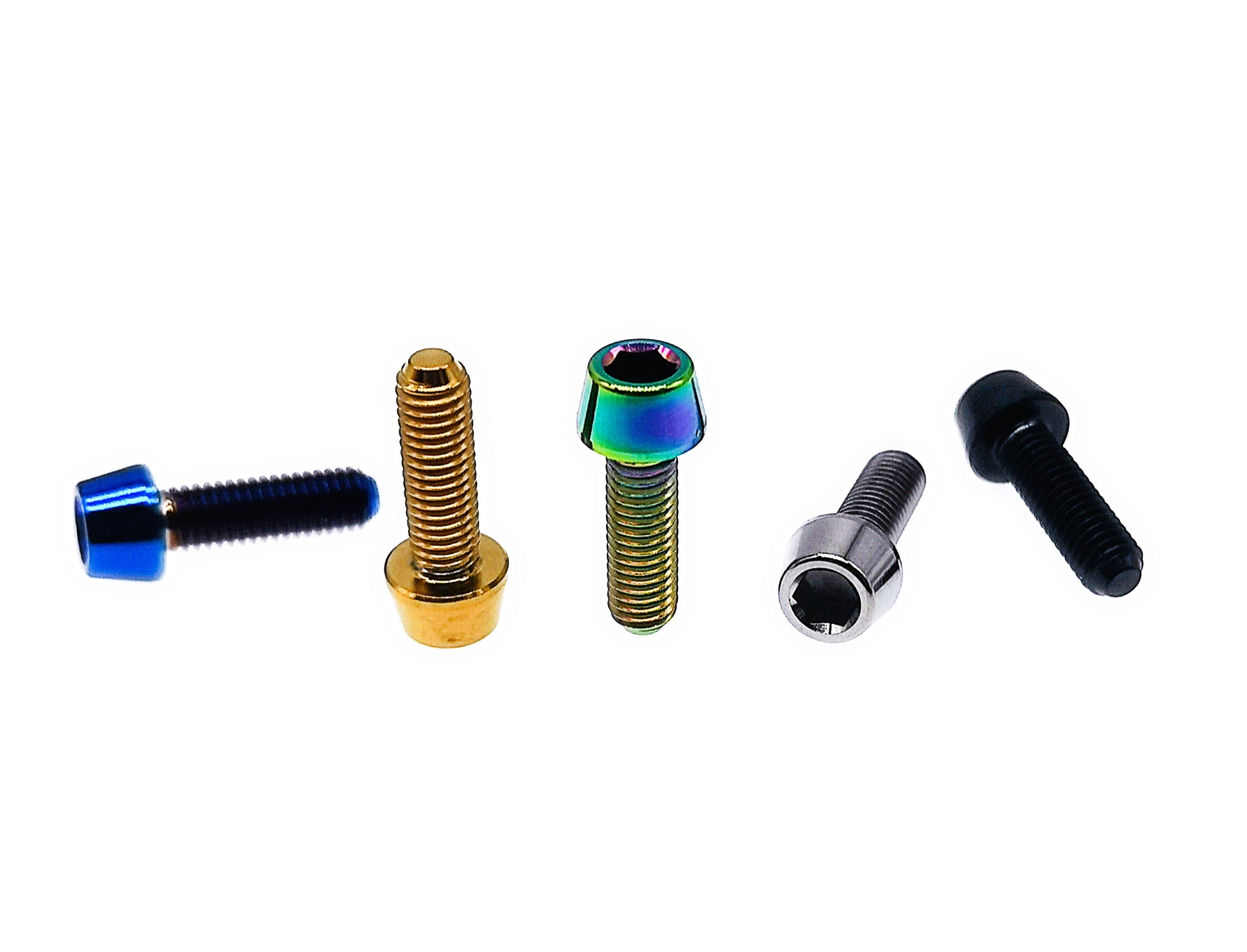

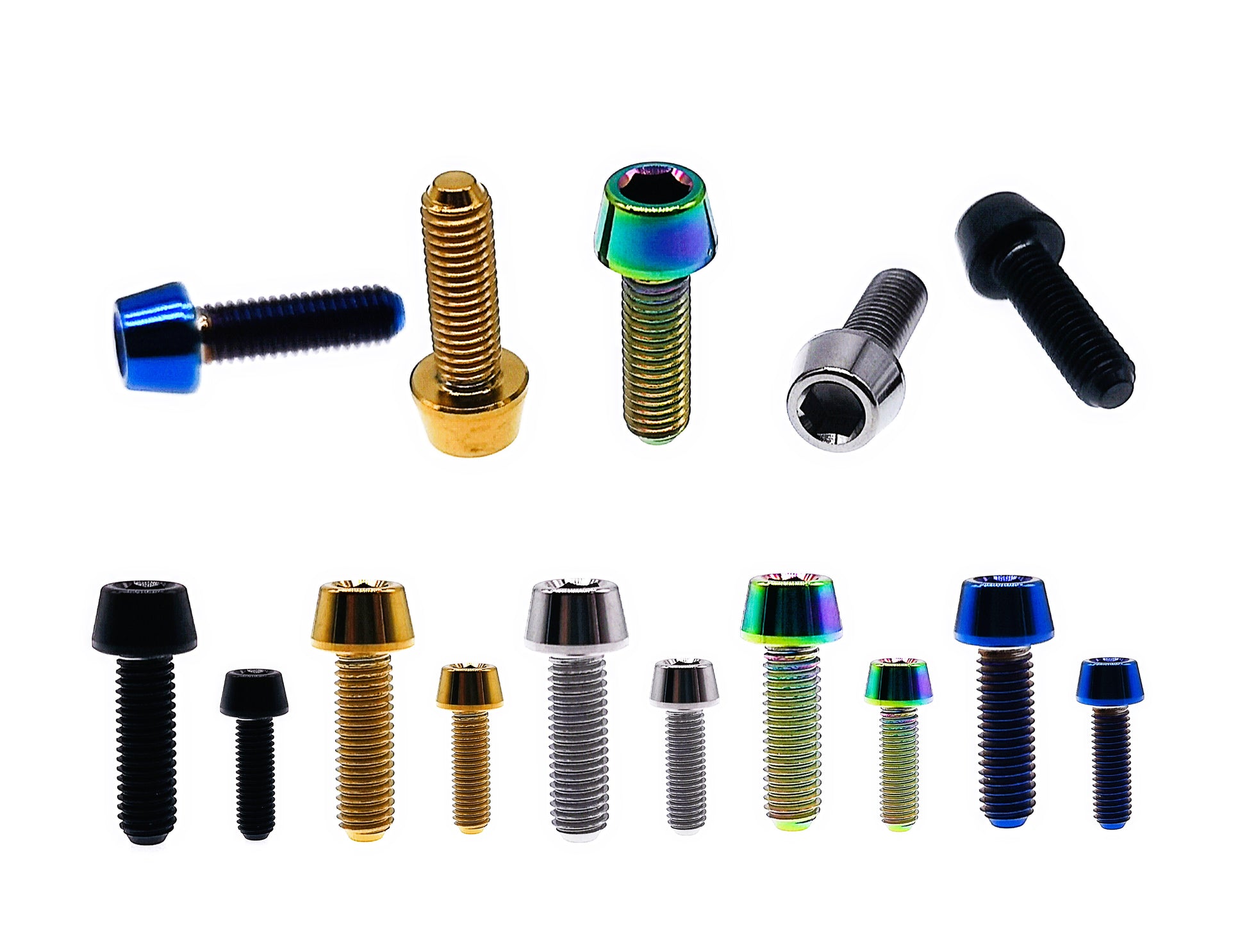

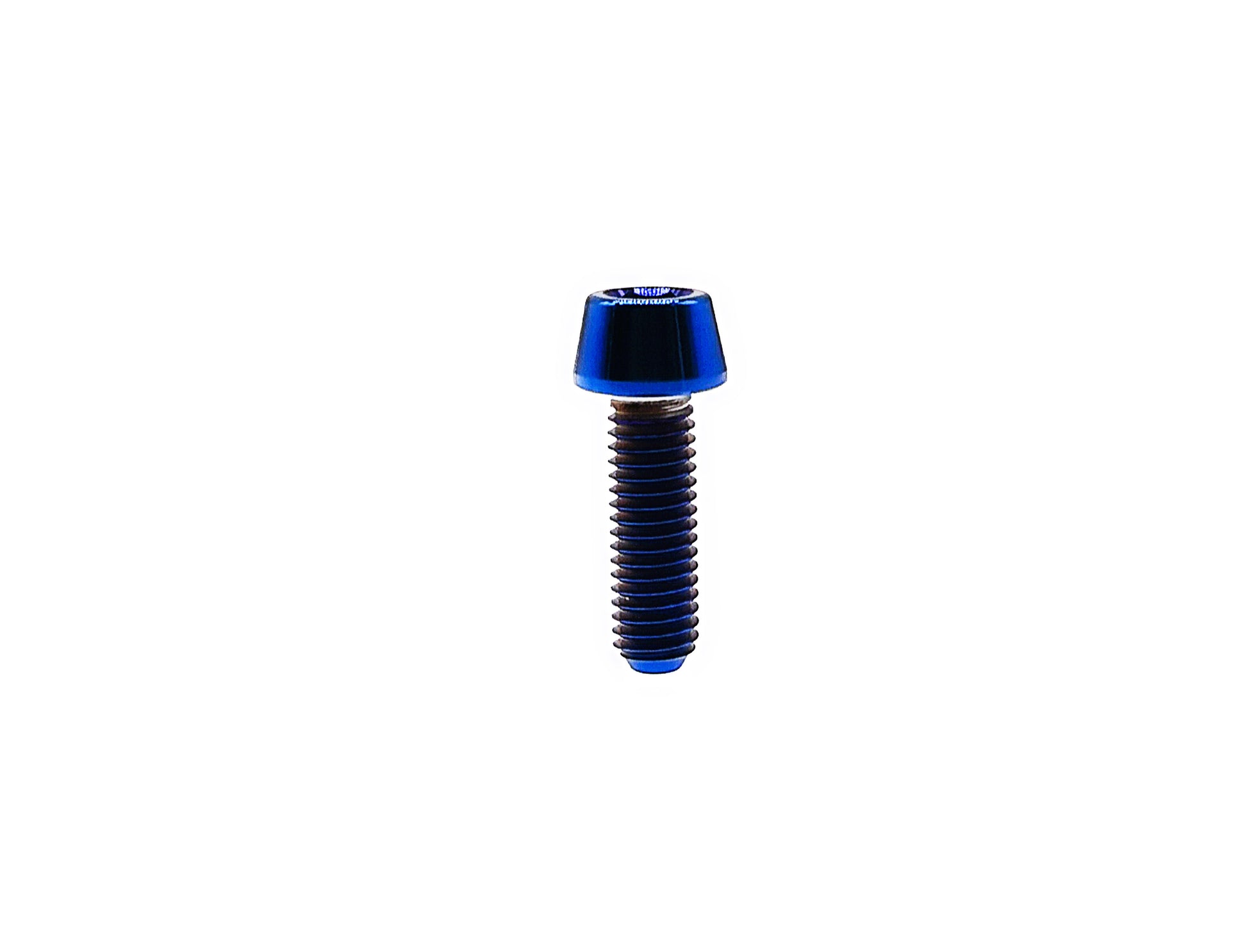

Colors: titanium, gold, rainbow, burn blue and black
Check thread coverage and fit
The existing listing notes that lengths up to 25 mm are fully threaded, while longer sizes differ. Confirm the selected length's shank and thread configuration, head seat, clearance and engagement against the original bolt. Use the component manufacturer's fastener specification and tightening instructions where loads or safety are involved. To learn more about fastener selection, shank geometry, and thread integrity, read our Ultimate Guide to Choosing Titanium Fasteners.
FAQ
Can I choose a longer version for more security? Not automatically. Too much length can bottom out or interfere with nearby parts.
