Titanium Bolt M6x10 16 18 20 25 30 35 40 45 50 55 60 65 70mm Hex socket cap screw with tapered head for Bike, Pitch 1mm, by Tianswer

M6 socket-cap bolt with a tapered head profile. This Tianswer bicycle fastener is listed in Grade 5 Ti-6Al-4V (TC4) titanium alloy with an M6 × 1.0 thread. The available lengths let you match an existing assembly without changing its specified head seat.

Specifications

• Thread: M6 × 1.0 mm
• Lengths: 10, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65 and 70 mm

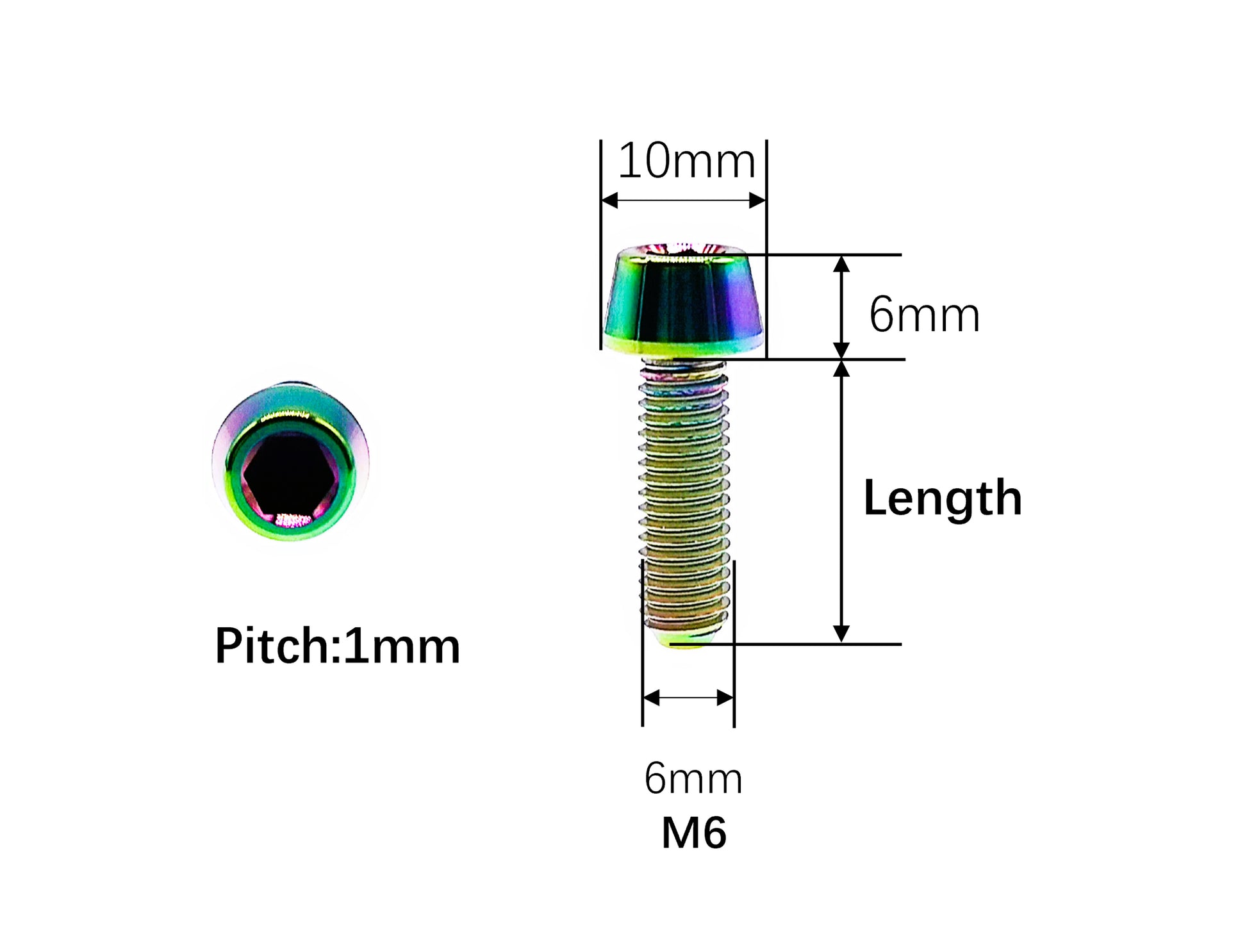

• Head diameter: 10 mm; head height: 6 mm
• Drive: 5 mm hex key

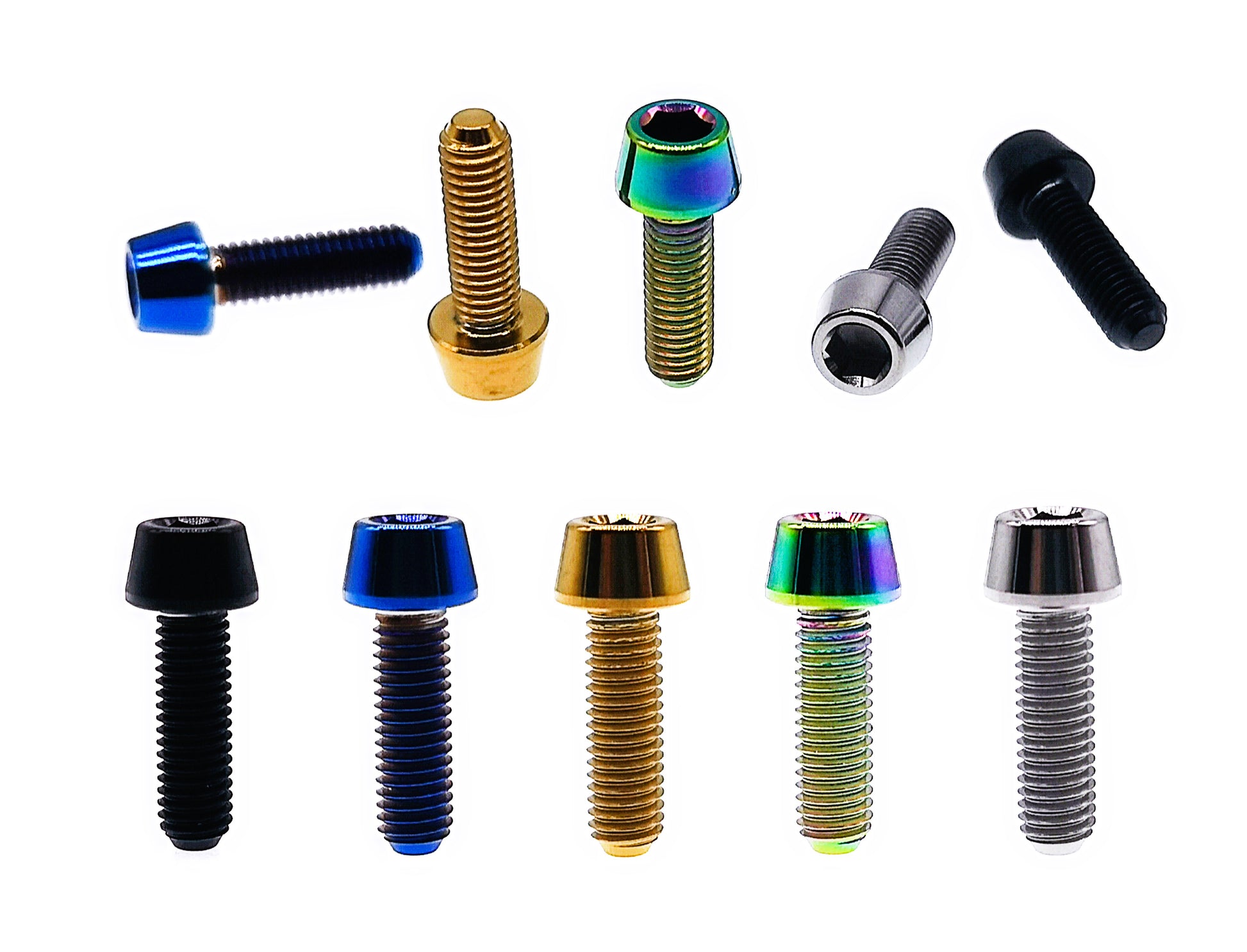

• Colors: titanium, gold, rainbow, burn blue and black
• Price is for one bolt

Select by the assembly

Check original thread pitch, head shape, length, clearance and required thread engagement. A tapered socket-cap head is not automatically interchangeable with a standard cylinder or countersunk head. Hand-start threads and use the bicycle component manufacturer's approved fastener and tightening procedure for any structural or safety-critical connection. To learn more about fastener selection, shank geometry, and thread integrity, read our Ultimate Guide to Choosing Titanium Fasteners.

FAQ

Is every length fully threaded? Do not assume that; compare the selected length's thread and unthreaded shank configuration with your original part.
