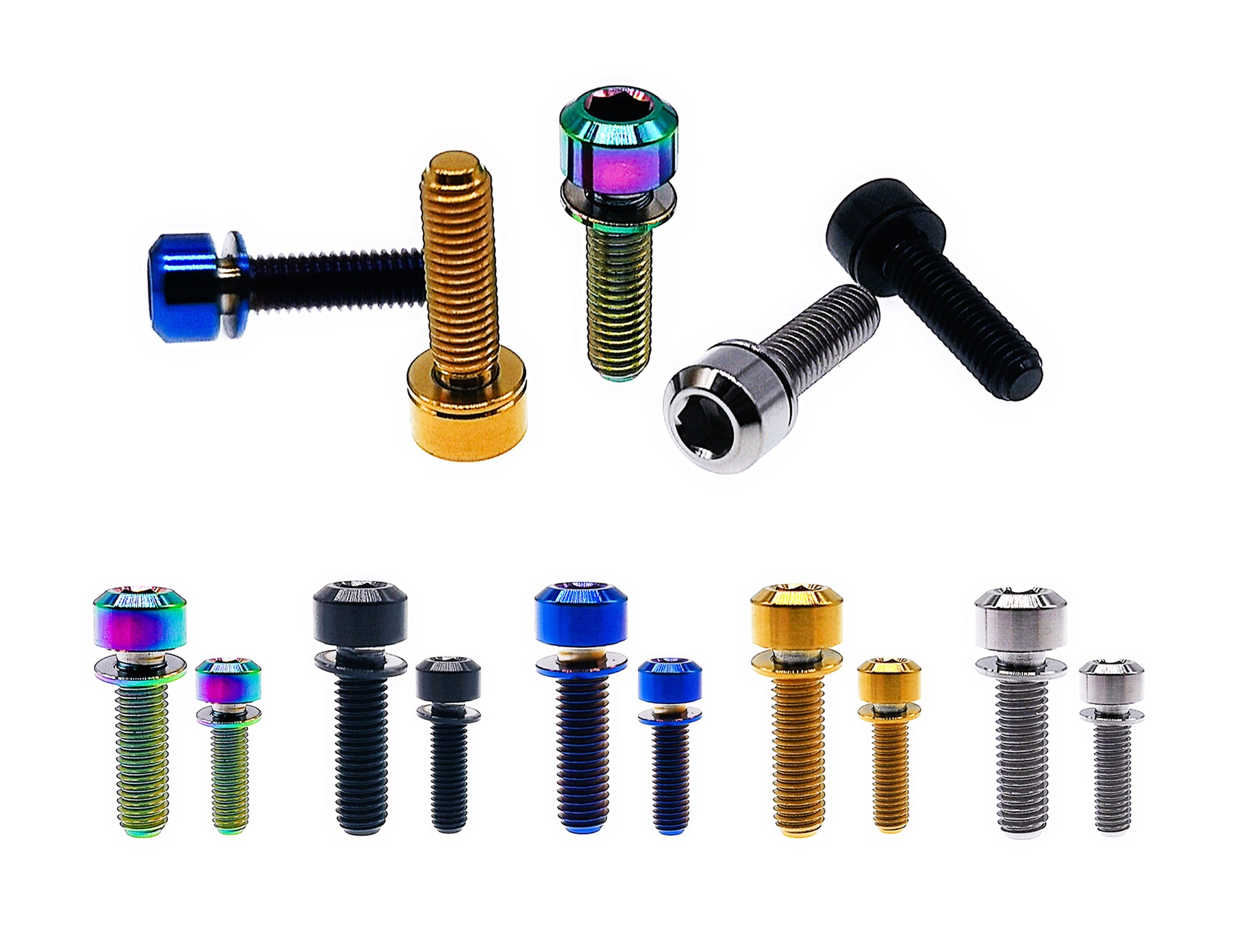

M6 chamfered socket-head bolt with a retained titanium washer. Listed in Grade 5 Ti-6Al-4V (TC4) alloy, this Tianswer bicycle fastener comes in seven lengths for assemblies that specify an M6 × 1.0 thread and a compatible washer-bearing surface.

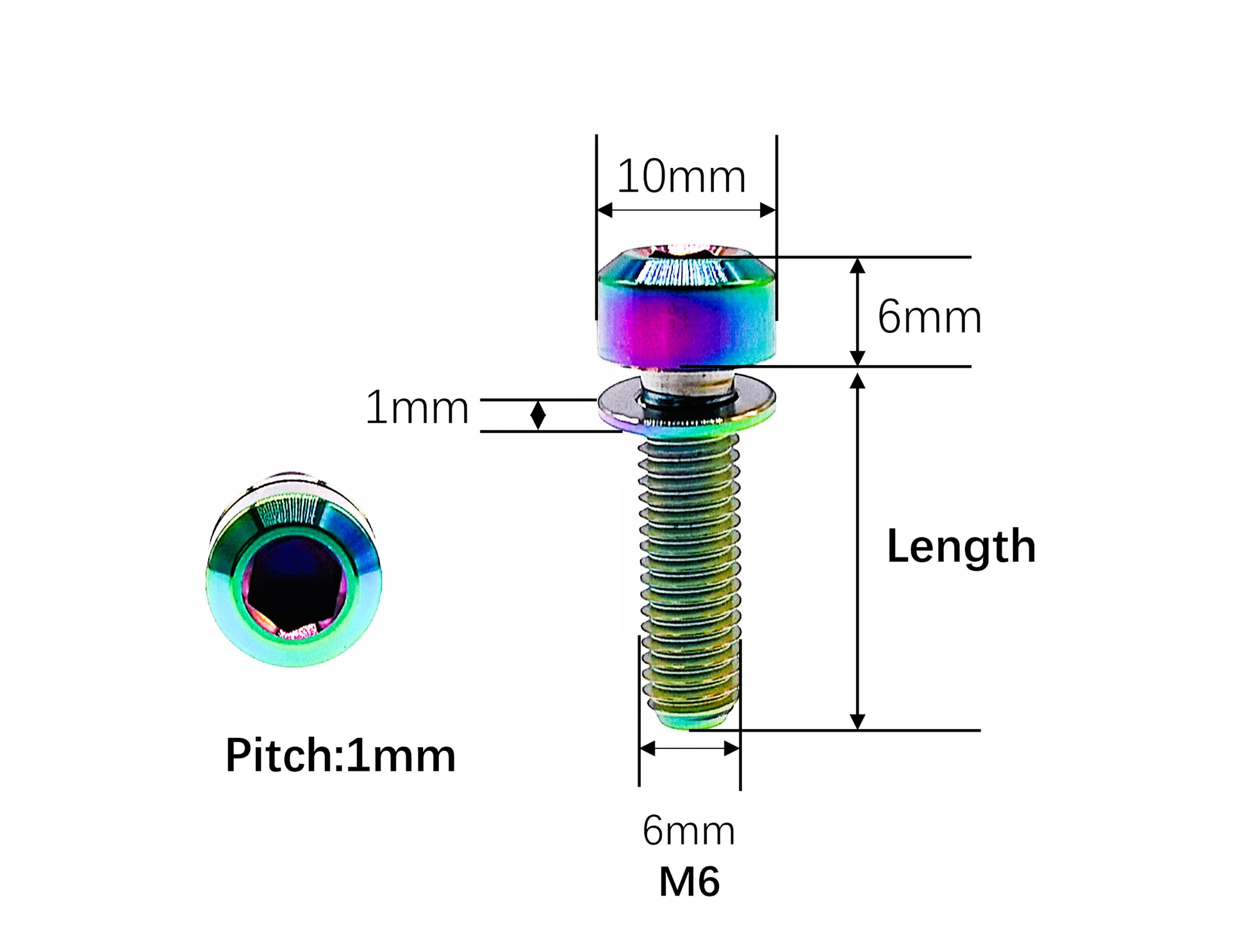

Specifications
Thread: M6 × 1.0 mm
Lengths: 16, 18, 20, 25, 30, 35 and 40 mm
Head diameter: 10 mm
Listed washer thickness: 1.0 mm
Drive: 5 mm hex key

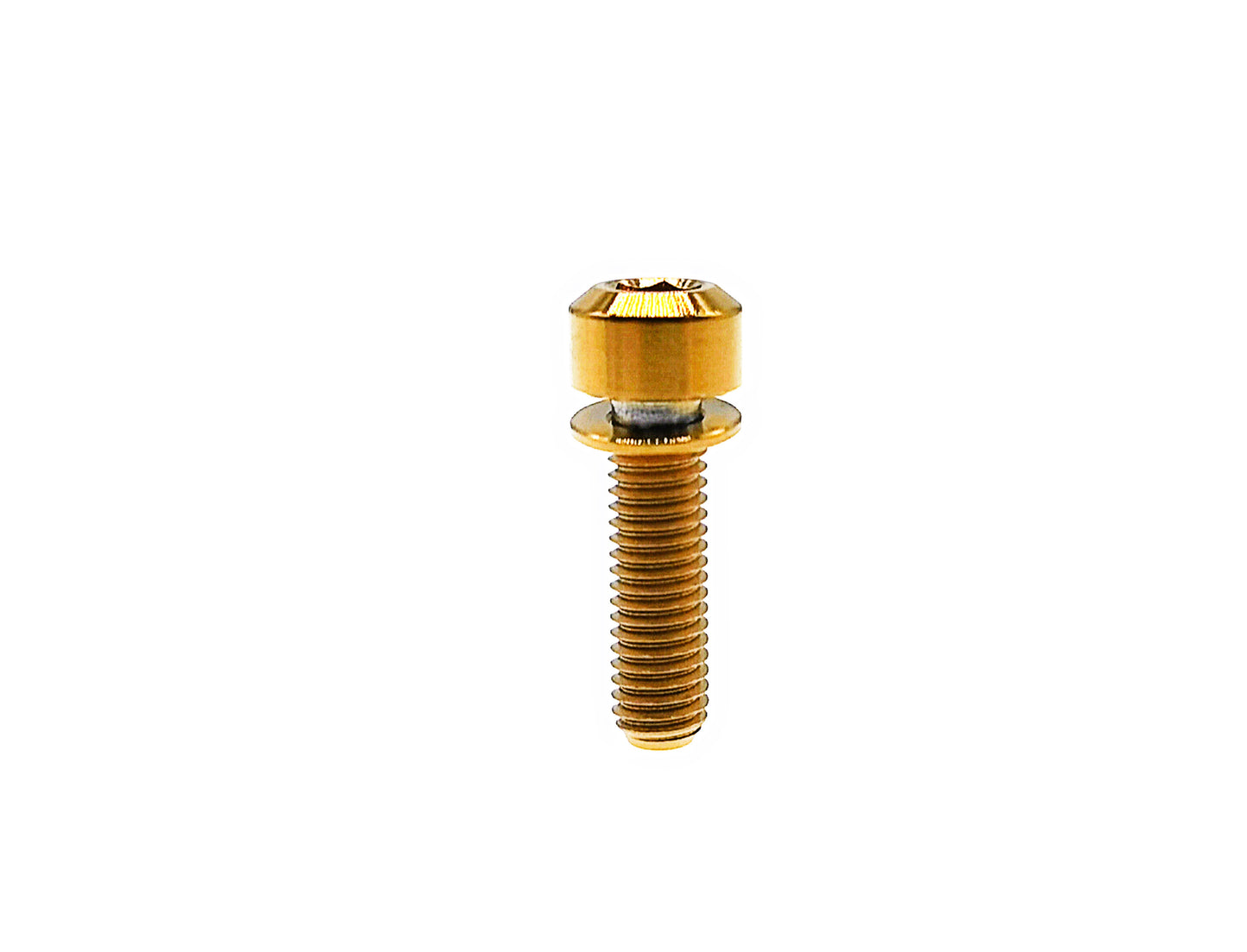

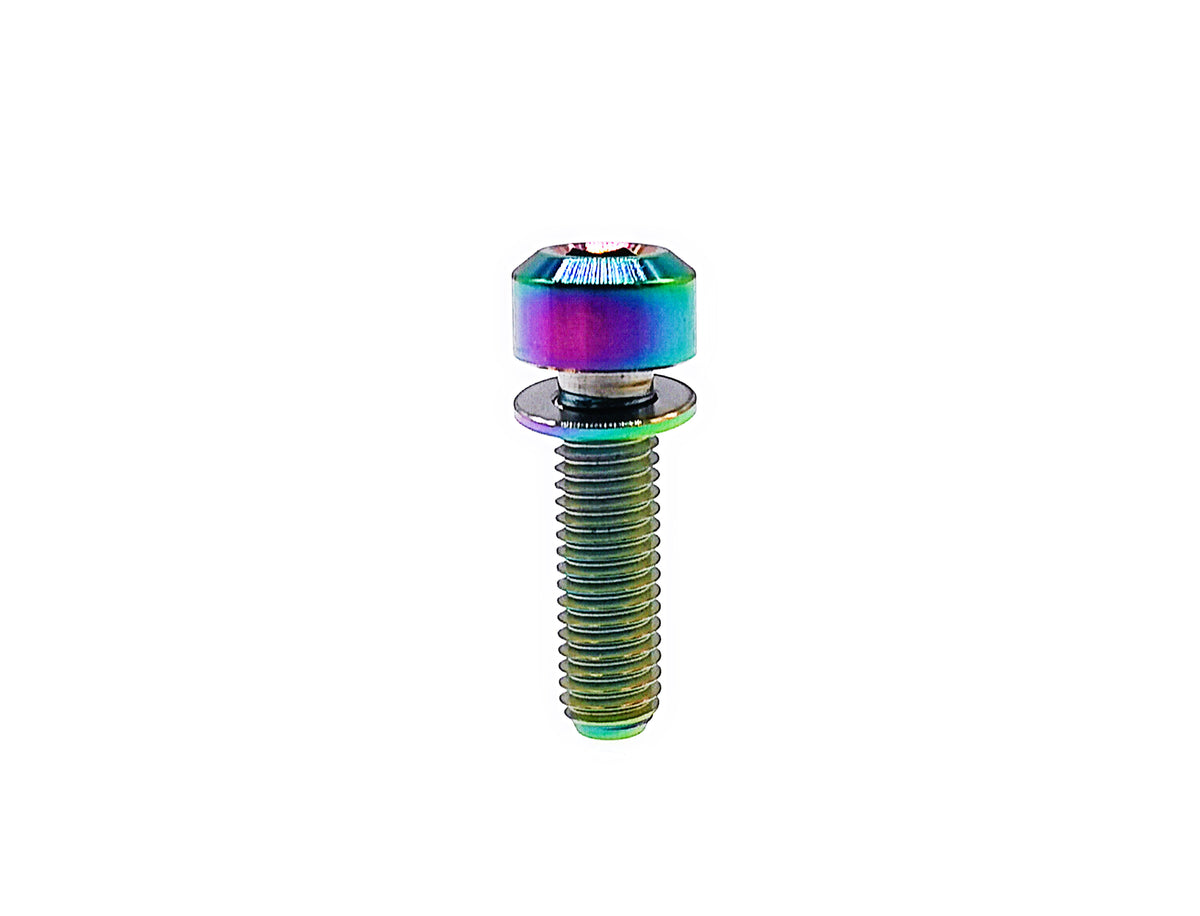

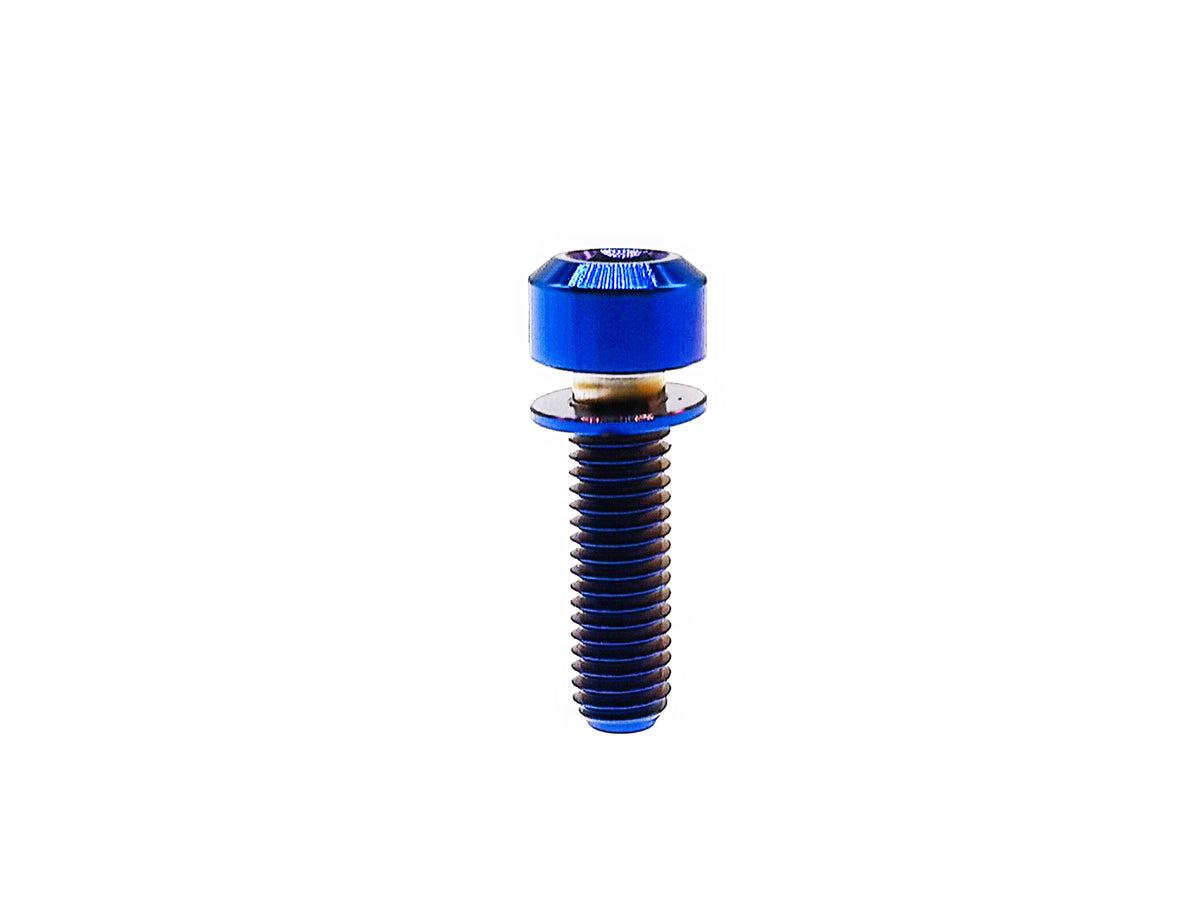

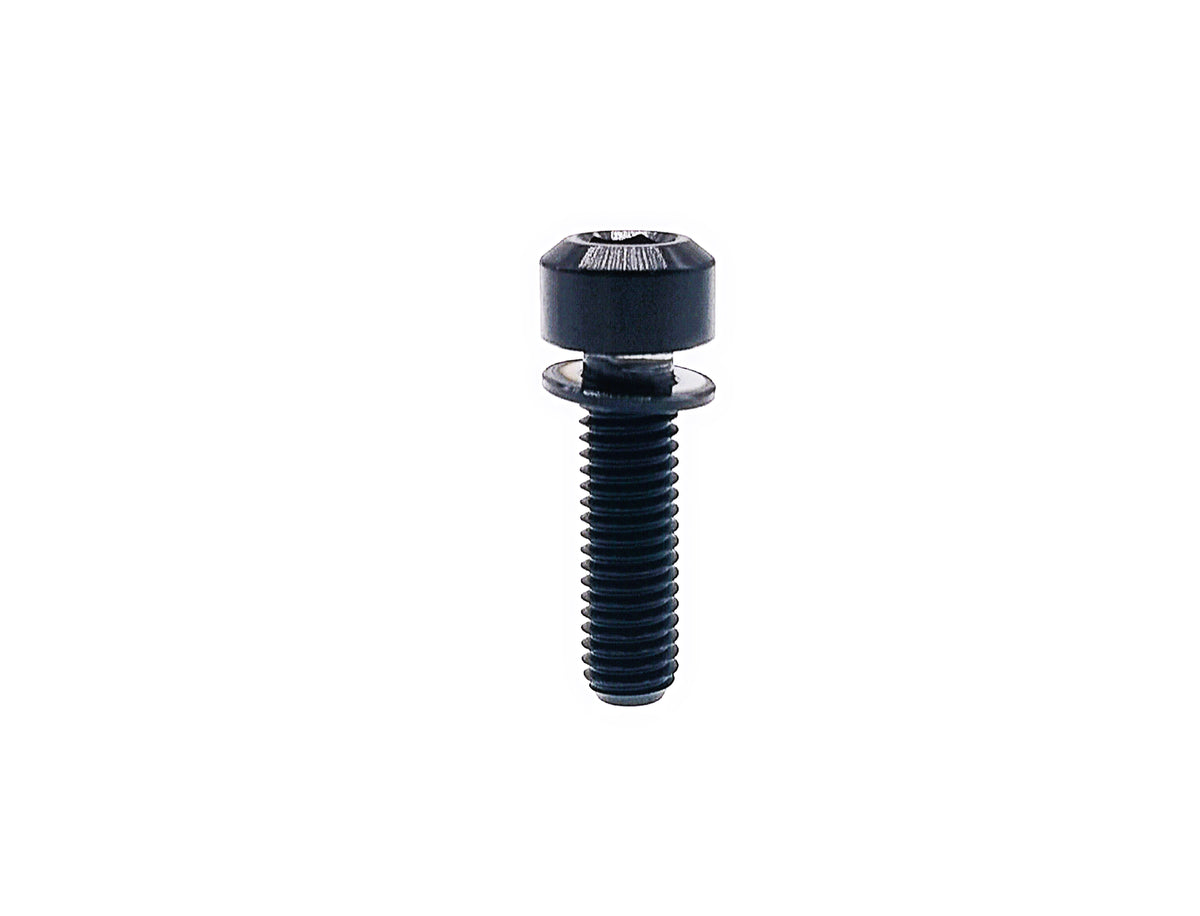

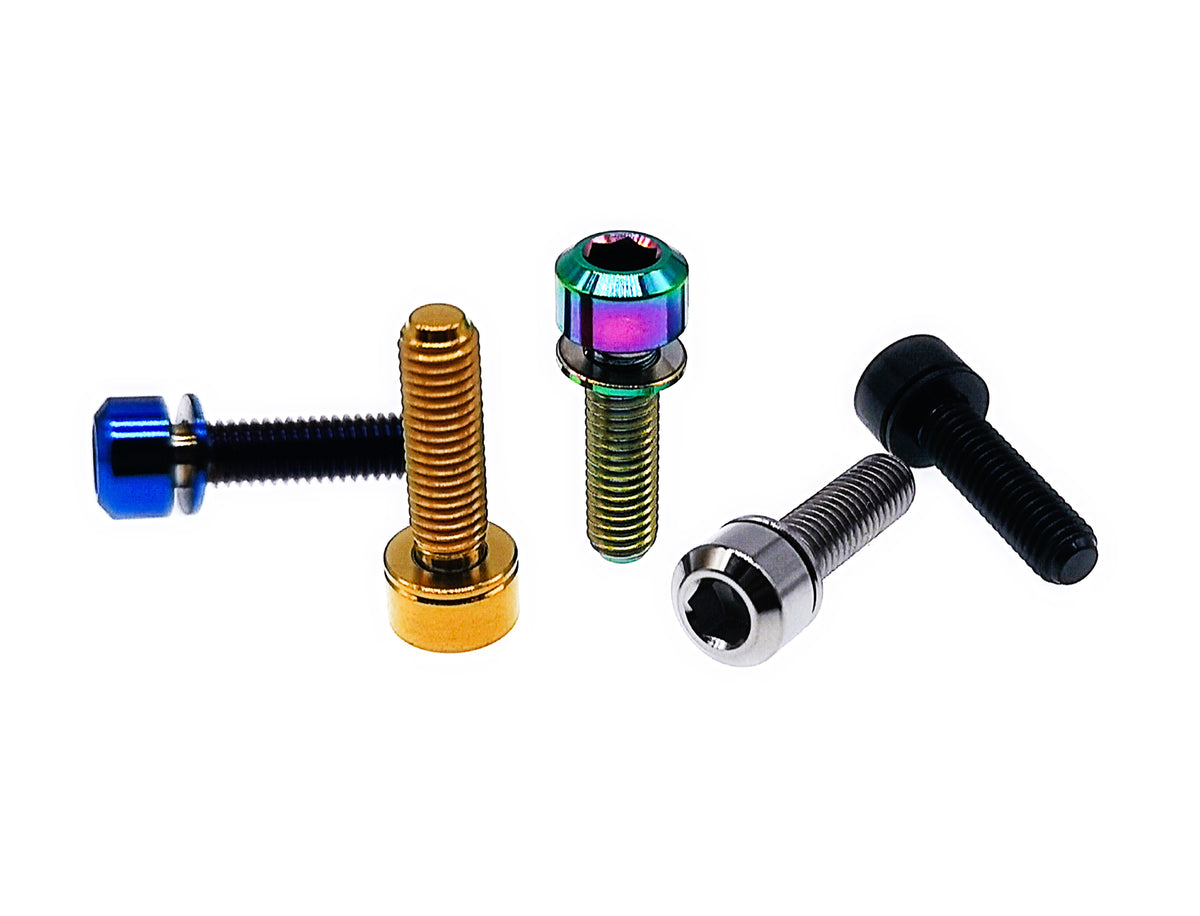

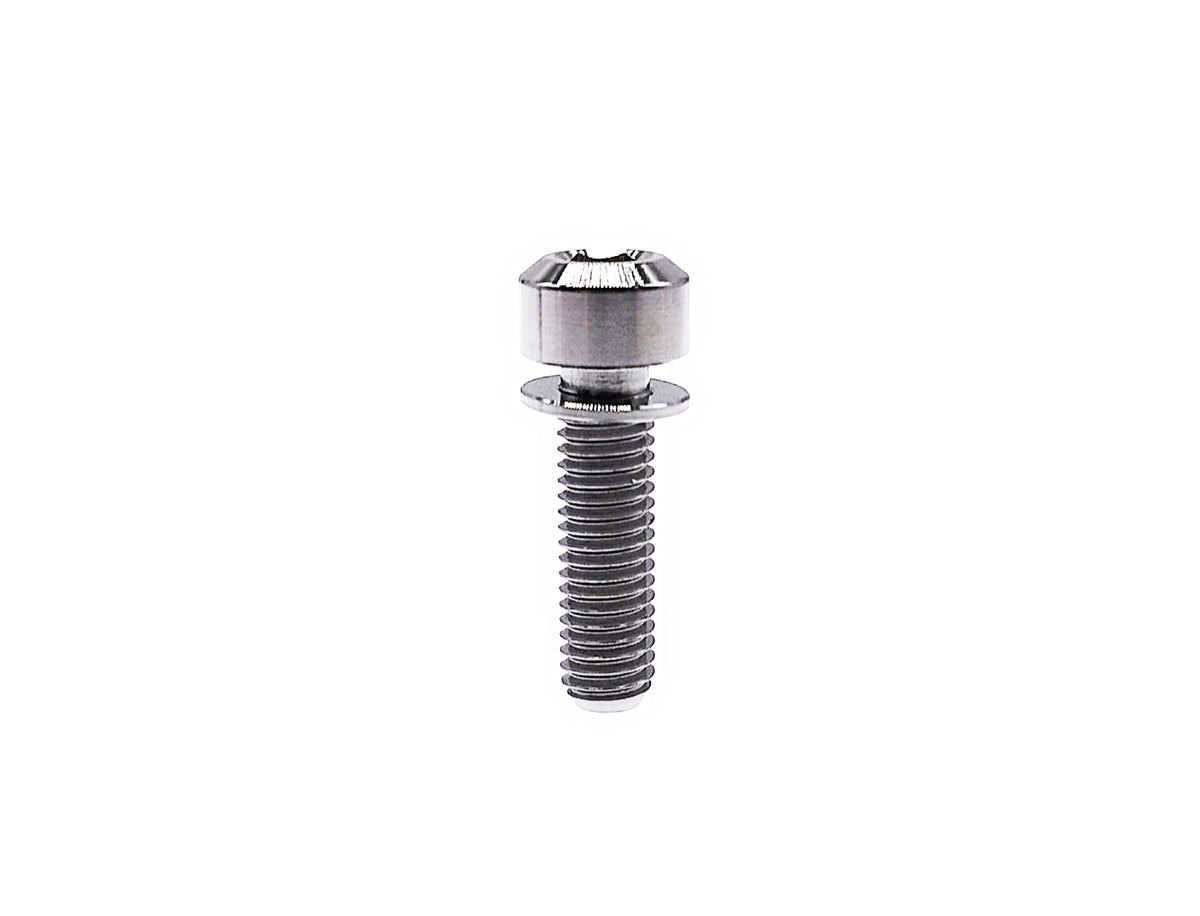

Colors: titanium, gold, rainbow, burn blue and black
Sold individually
Fitment and installation
Compare the existing bolt's length, thread pitch, head clearance and the washer's mating surface. Select a length with appropriate thread engagement that does not bottom out. Hand-start the threads and follow the bicycle component manufacturer's tightening procedure, especially on steering and brake-related components. To learn more about fastener selection, shank geometry, and thread integrity, read our Ultimate Guide to Choosing Titanium Fasteners.
FAQ
Does the washer make this interchangeable with a flanged bolt? Not automatically. Match the original contact geometry and component specification first.
