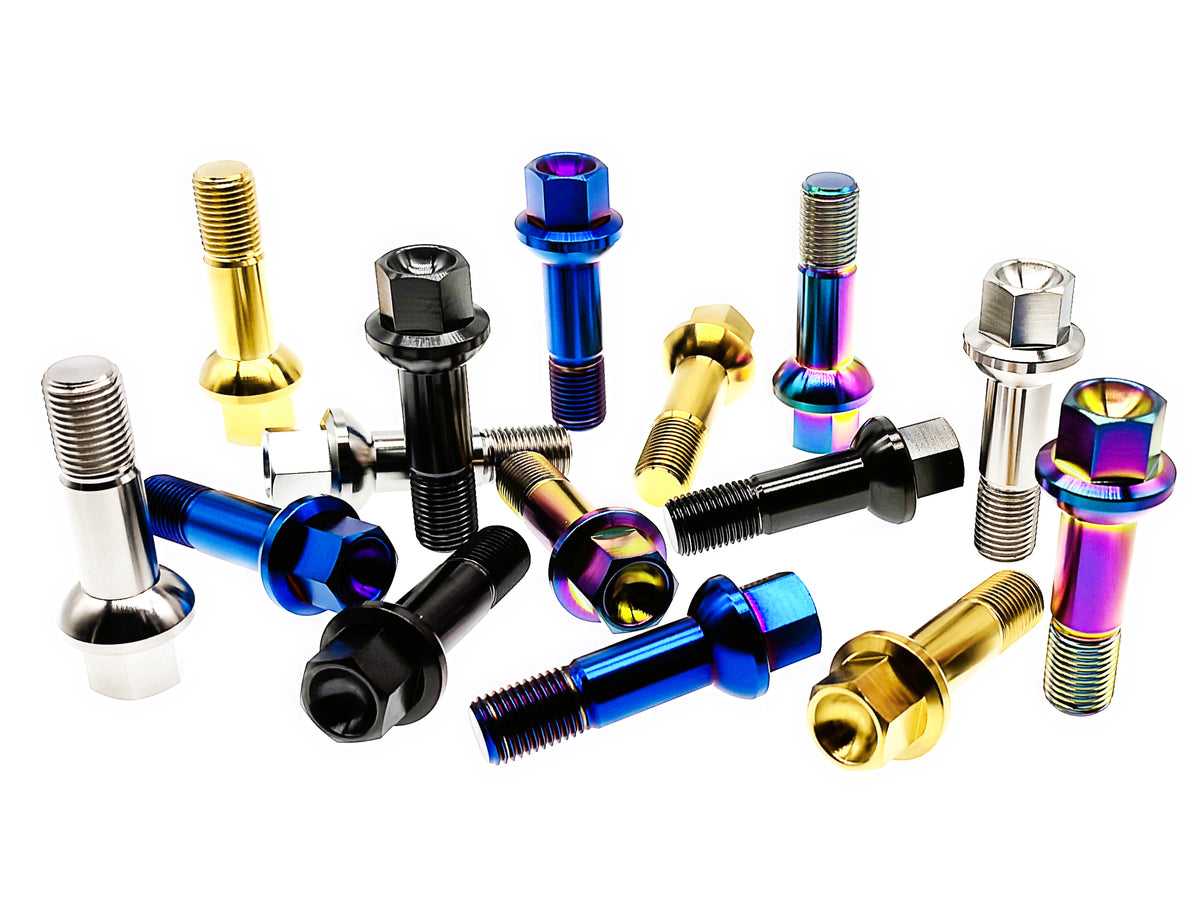

Titanium bolts M14×27 28 35 40 45 50mm Ball seat Lug Bolt Sets for Mercedes-Benz cars, Pitch 1.5mm, by Tianswer

High-performance Aerospace Ti-6Al-4V Grade 5 titanium M14x1.5 wheel lug bolts engineered specifically for Mercedes-Benz and Mercedes-AMG factory alloy wheels featuring OEM-spec R14 radius ball seats.

Sold in sets of 5 (1 wheel / spare), 10 (front or rear axle / 2 wheels), and 20 (full car / 4 wheels). Select your color, shank length, and package size.

Package Options & Vehicle Axle Configurations

Mercedes-Benz vehicles utilize a 5-lug bolt pattern (5 fasteners per wheel). To match your maintenance or tuning setup, choose from three tailored package quantities:

• Set of 5 (1 Wheel / Spare): Complete hardware set for one wheel. Perfect for single wheel replacement, spare tire mounting, or test-fitting custom spacer offsets.
• Set of 10 (Front or Rear Axle / 2 Wheels): Contains 10 lug bolts to outfit one complete axle. Ideal when upgrading front or rear brake kits, or when running staggered wheel spacer widths.
• Set of 20 (Full Car / 4 Wheels): Complete 20-piece vehicle set to replace all factory wheel bolts across all four corners for maximum rotating unsprung mass reduction.

Mercedes-Benz OEM R14 Radius Ball Seat Profile

Mercedes-Benz factory wheels require an R14 spherical radius ball seat (25.5mm outer collar diameter) to achieve 100% surface contact against the concave wheel pocket. Unlike generic 60-degree conical aftermarket bolts that gouge and damage OEM Benz wheels, our bolts are CNC-machined with high-precision radii to guarantee uniform load distribution, eliminating localized stress risers and ensuring rock-solid wheel clamping under heavy vehicle weights.

Unsprung & Rotating Mass Reduction for AMG & Luxury Sedans

Modern Mercedes-Benz platforms—from performance AMG GT and C63/E63 models to heavy luxury sedans and SUVs—suffer from substantial rotational inertia due to heavy factory steel lug bolts. Weighing just 47–62 grams per bolt, our Grade 5 titanium lug bolts cut rotating unsprung hardware weight by roughly 45% (~1.0 kg / 2.2 lbs saved across 20 bolts). This weight savings translates into improved suspension rebound over potholes, sharper steering tracking, and snappier throttle acceleration.

Aerospace Grade 5 (Ti-6Al-4V) Structural Integrity

Forged from certified Grade 5 Ti-6Al-4V titanium alloy, these lug bolts exceed Class 10.9 steel specifications with an ultimate tensile strength of 950–1050 MPa. Titanium's natural passivating oxide barrier protects against the unsightly brown rust and salt corrosion that plagues factory chrome and zinc-plated Mercedes lug bolts after just one winter season.

OEM Stock & Extended Spacer Lengths

Available in factory standard shank lengths (27mm and 28mm for flush OEM wheel fitment) as well as extended shank lengths (35mm, 40mm, 45mm, and 50mm) engineered to provide full safe thread engagement when running 5mm, 10mm, 12mm, 15mm, or 20mm hub-centric wheel spacers.

Mercedes-Benz Vehicle Compatibility

• C-Class & E-Class: W204, W205, W206 (C300, C43, C63 AMG) and W211, W212, W213 (E350, E400, E450, E53, E63 AMG).
• S-Class & CLS-Class: W221, W222, W223 and W218, W257 (CLS450, CLS53, CLS63 AMG).
• A-Class, CLA & GLA: W176, W177, C117, C118 (A35, A45, CLA45 AMG).
• SUVs & Crossovers: GLC (X253), GLE (W166/V167), GLS (X166/X167), and G-Class (W463 where M14x1.5 is specified).
• Note: Exclusively designed for factory OEM Mercedes alloy wheels requiring an R14 ball seat. Not compatible with aftermarket wheels requiring 60-degree conical/cone seats.

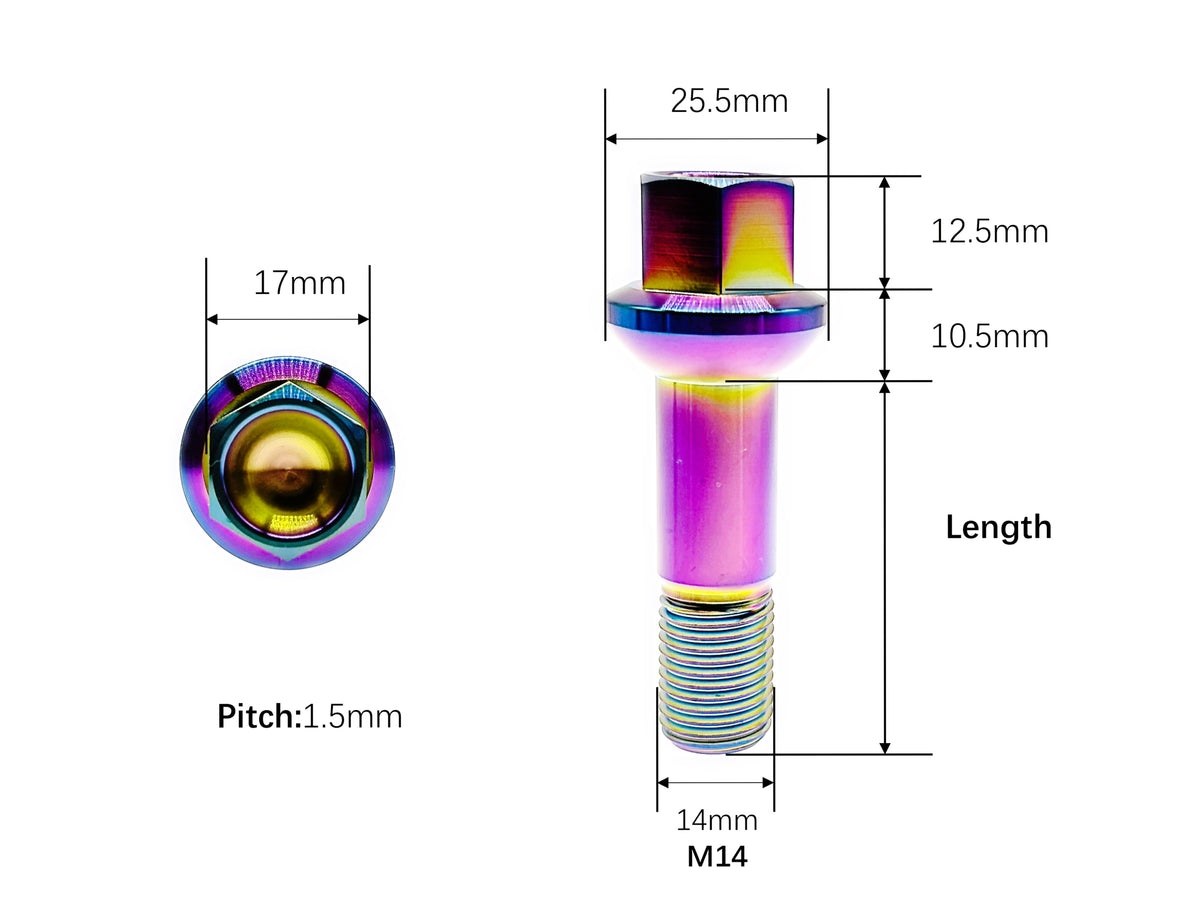

Specifications & Dimensions

Material: Certified Aerospace Ti-6Al-4V (TC4) Titanium Alloy, Grade 5
Thread Diameter: M14
Thread Pitch: 1.5mm (Metric Coarse)
Seat Type: OEM Mercedes-Benz R14 Spherical Ball Seat
Drive Size: 17mm Hex Drive Socket
Head Diameter / Collar: 25.5mm
Head Height: 23.0mm
Available Shank Lengths: 27mm, 28mm (OEM Stock), 35mm (+7-8mm spacer), 40mm (+12mm spacer), 45mm (+17mm spacer), 50mm (+22mm spacer)
Weight: ~47–62g per bolt

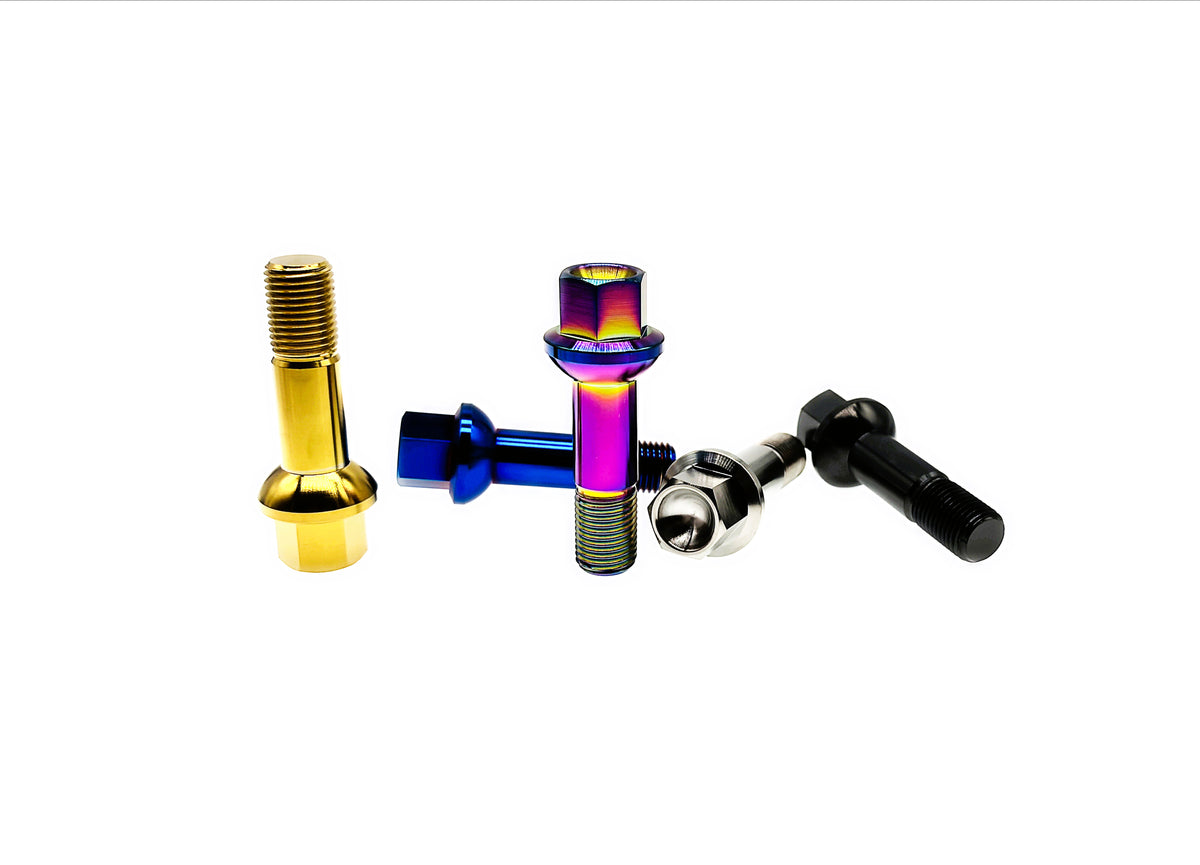

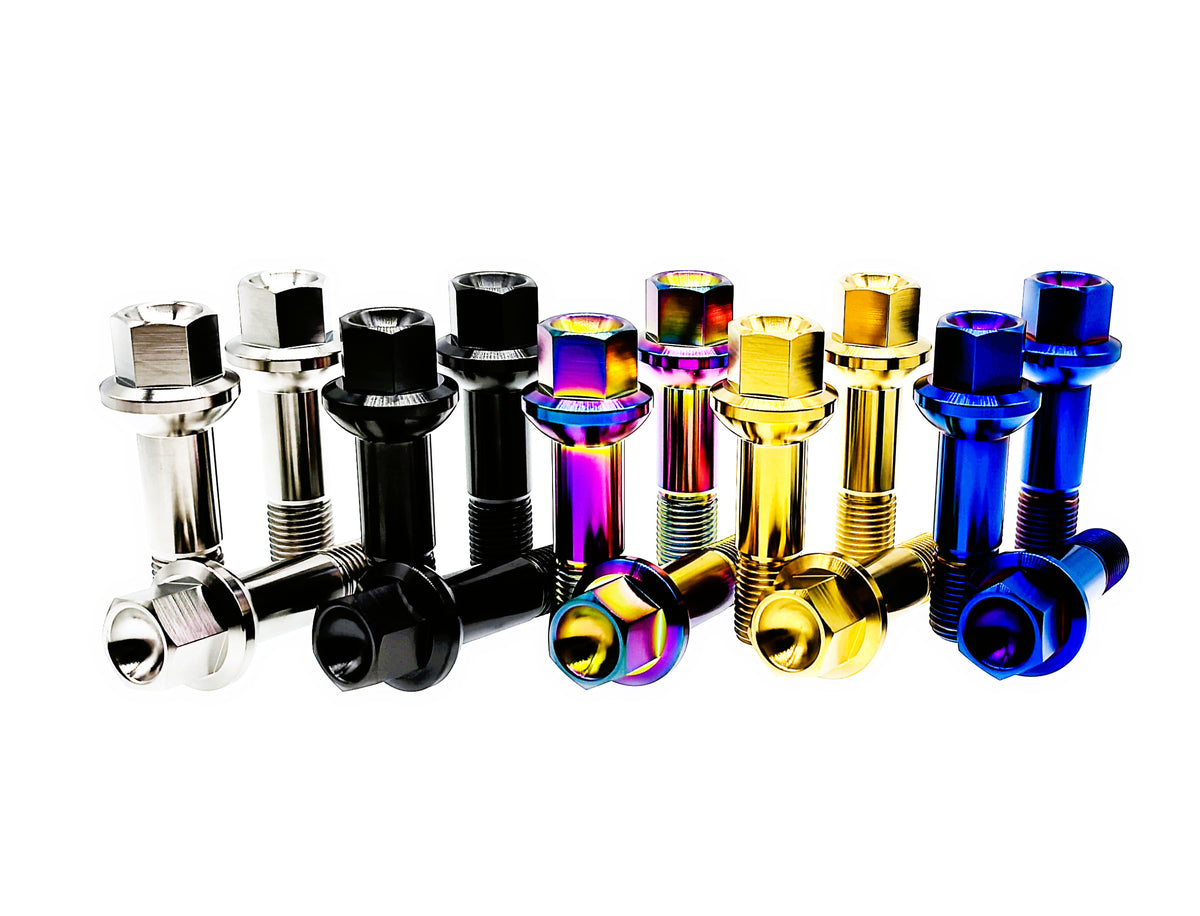

Available Finishes: Natural Titanium, PVD Vacuum-Coated Gold, Rainbow, Burn Blue, PVD Deep Black

Installation & Torque Guidelines

Thoroughly wire-brush the vehicle hub threads to clear oxidation and debris. Apply a light dab of anti-seize paste to the thread flanks only (never lubricate the ball seat mating face). Hand-thread each bolt to ensure proper alignment. Tighten in a progressive 5-lug star crisscross sequence (1-3-5-2-4) using a calibrated manual torque wrench with a protective plastic-lined 17mm socket to Mercedes factory torque spec: typically 130–150 N·m (96–111 lb-ft, depending on model year and chassis). Re-torque after the first 100 km of driving. To learn more about unsprung rotational weight and wheel bolt engineering, read our Unsprung Weight & Titanium Wheel Bolts Technical Guide.
