Titanium bolts M14×29 34 35 38 40 44mm Floating Ball seat Lug Bolt Sets for Porsche cars, Pitch 1.5mm, by Tianswer

Track-engineered Aerospace Ti-6Al-4V Grade 5 titanium M14x1.5 wheel lug bolts featuring OEM-spec two-piece floating R14 radius ball seat collar washers, engineered specifically for Porsche 911 (996, 997, 991, 992), 718 Cayman / Boxster, Panamera, Macan, and Cayenne.

Sold in sets of 5 (1 wheel / spare), 10 (front or rear axle / 2 wheels), and 20 (full car / 4 wheels). Select your color, shank length, and package size.

Package Options & Vehicle Axle Configurations

Porsche 5-lug sports cars and SUVs feature a standard 5-lug wheel bolt pattern (5 fasteners per wheel). To match your maintenance or tuning setup, choose from three tailored package quantities:

• Set of 5 (1 Wheel / Spare): Complete hardware set for one wheel. Perfect for single wheel replacement, spare tire mounting, or test-fitting custom spacer offsets.
• Set of 10 (Front or Rear Axle / 2 Wheels): Contains 10 lug bolts to outfit one complete axle. Ideal when upgrading front or rear brake kits, or when running staggered wheel spacer widths.
• Set of 20 (Full Car / 4 Wheels): Complete 20-piece vehicle set to replace all factory wheel bolts across all four corners for maximum rotating unsprung mass reduction.

Two-Piece Floating R14 Ball Seat Engineering

Porsche factory alloy wheels utilize an R14 spherical radius ball seat. Our wheel bolts incorporate a precision-machined two-piece floating collar washer that rotates independently of the bolt body. When torquing wheel bolts down, this floating washer isolates the soft aluminum wheel seat from rotational friction, preventing wheel galling, seat gouging, and false torque readings while ensuring true clamping force distribution across all 5 lugs.

Unsprung & Rotating Mass Reduction for Dynamic Handling

On sports cars of Porsche's caliber, wheel lug bolts represent critical unsprung and rotating mass located at the outer perimeter of the hub assembly. Weighing approximately 65–75 grams each, our Grade 5 titanium bolts slash rotating mass by nearly 45% compared to factory heavy steel bolts (~1.2 kg / 2.6 lbs total unsprung mass saved across 20 bolts). Drivers immediately notice sharpened steering turn-in response, faster damper reaction over track curbing, and improved rotational acceleration.

Aerospace Grade 5 (Ti-6Al-4V) Strength & Track Heat Endurance

Forged and precision CNC-machined from certified Grade 5 Ti-6Al-4V titanium alloy, these lug bolts exceed Class 10.9 steel specifications with an ultimate tensile strength of 950–1050 MPa and exceptional shear yield strength. Under punishing track-day braking where carbon-ceramic (PCCB) or iron brake rotors transfer massive thermal loads into the wheel hubs, titanium remains virtually immune to thermal expansion fatigue, heat tinting, and track chemical corrosion.

Extended Lengths for Aftermarket Wheel Spacers

Available in both standard factory length (29mm shank length for spacer-free OEM wheels) and extended shank configurations (34mm, 35mm, 38mm, 40mm, and 44mm) designed specifically to provide correct thread engagement when running 5mm, 7mm, 10mm, 12mm, or 15mm hub-centric wheel spacers.

Porsche Vehicle Fitment

• Porsche 911: 996, 997, 991, and 992 generations (Carrera, S, 4S, GTS, Turbo, GT3 with 5-lug hubs).
• Porsche 718 / Boxster / Cayman: 986, 987, 981, and 982 platforms (Base, S, GTS, GT4, Spyder).
• Porsche Sedans & SUVs: Panamera (970/971), Macan (95B), and Cayenne (955/957/958/PO536).
• Note: Designed exclusively for 5-lug Porsche wheel hub applications; not compatible with Center Lock wheel systems.

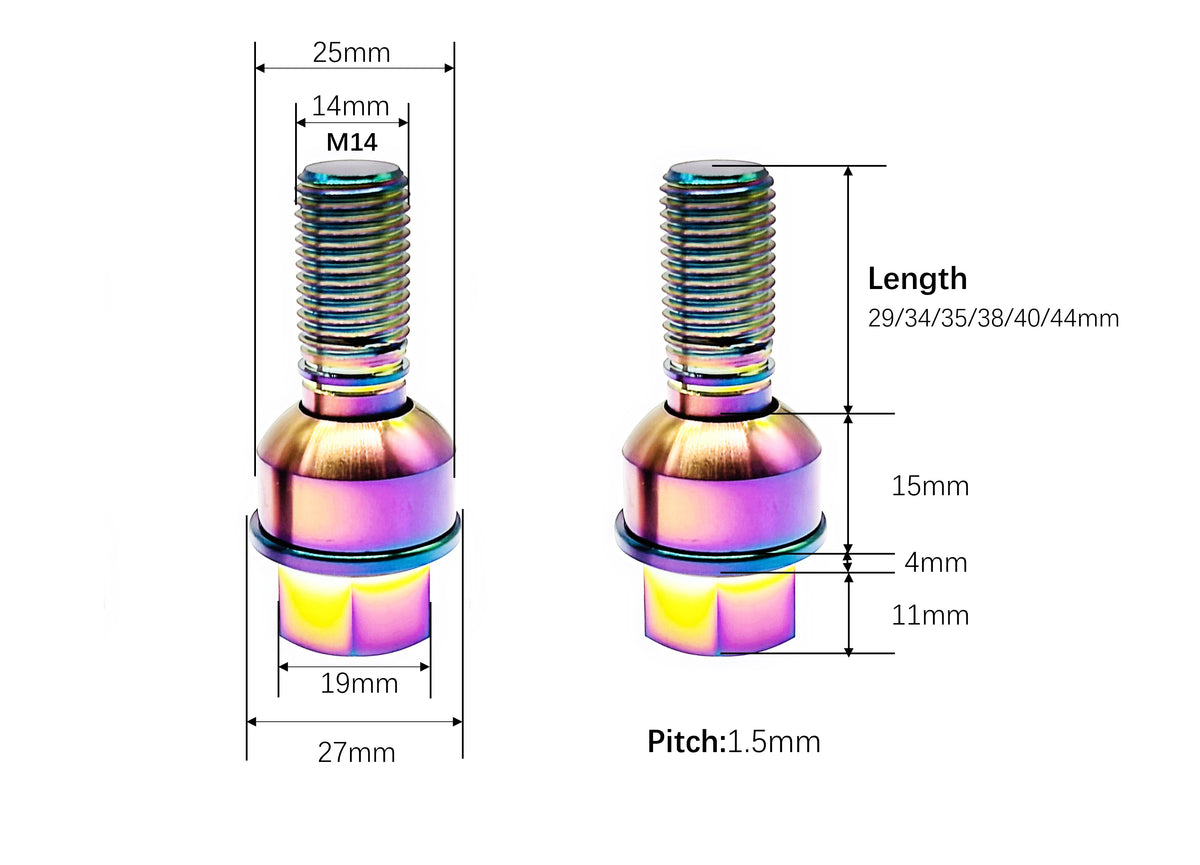

Specifications & Dimensions

Material: Certified Aerospace Ti-6Al-4V (TC4) Titanium Alloy, Grade 5
Thread Diameter: M14
Thread Pitch: 1.5mm (Metric Coarse)
Seat Type: OEM Porsche R14 Radius Ball Seat with Two-Piece Floating Washer
Drive Size: 19mm Hex Drive Socket
Head Diameter: 27.0mm
Head Height: 15.0mm
Available Shank Lengths: 29mm (OEM Stock), 34mm (+5mm spacer), 35mm, 38mm (+8-10mm spacer), 40mm, 44mm (+15mm spacer)
Weight: ~65–75g per bolt (~45% lighter than OEM steel hardware)

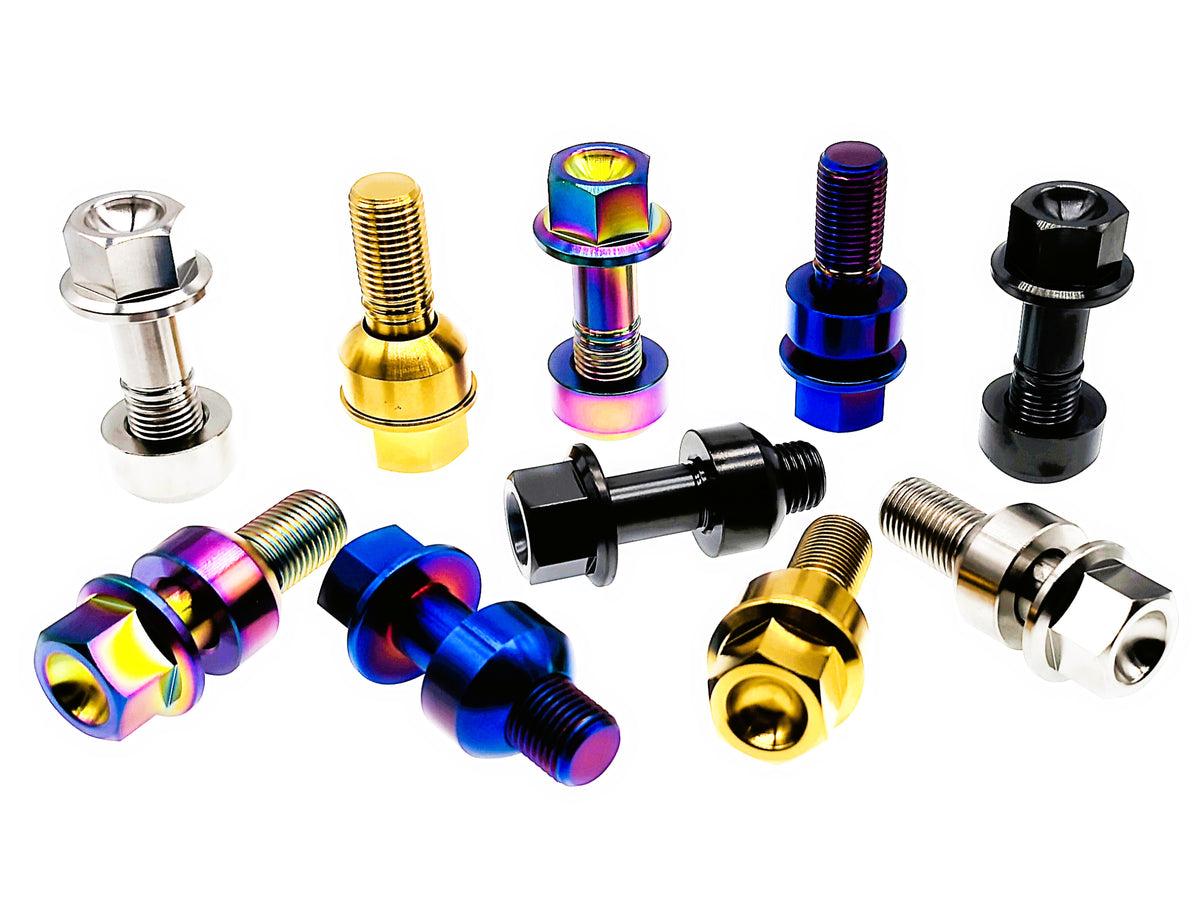

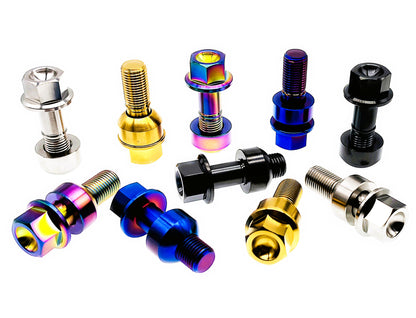

Available Finishes: Natural Titanium, PVD Vacuum-Coated Gold, Rainbow, Burn Blue, PVD Deep Black

Installation & Torque Guidelines

Ensure hub threads are free of grit and rust. Apply a light dab of high-temperature anti-seize paste to the thread flanks and between the floating washer and bolt flange (do not lubricate the ball seat face mating with the wheel). Hand-thread all bolts into the hub to prevent cross-threading. Tighten in a progressive crisscross star pattern (1-3-5-2-4) using a non-marring, plastic-sleeved 19mm socket with a calibrated manual torque wrench to Porsche factory spec: 160 N·m (118 lb-ft) for 991/992/718 generations (or 130 N·m / 96 lb-ft for 996/986 generations). Re-check torque after initial 50–100 km of driving. To learn more about unsprung rotational dynamics and why Grade 5 titanium is ideal for motorsport wheels, read our Unsprung Weight & Titanium Wheel Bolts Technical Guide.
