Choose a twelve-point flange nut by diameter, pitch and bearing surface. This Tianswer nut series is listed in Grade 5 Ti-6Al-4V (TC4) titanium alloy. The flange and twelve-point exterior are useful identification details, but the thread must match the mating stud exactly.

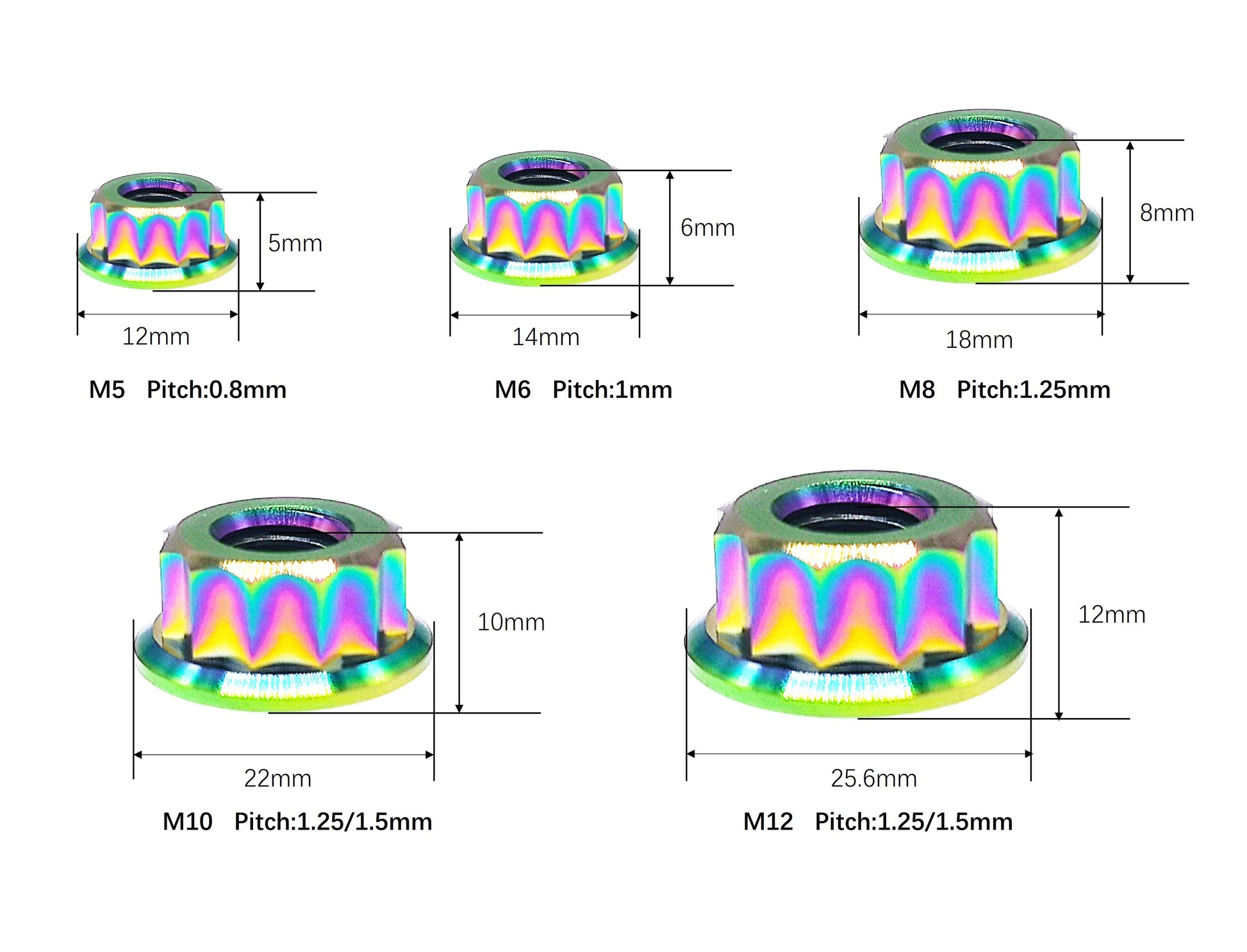

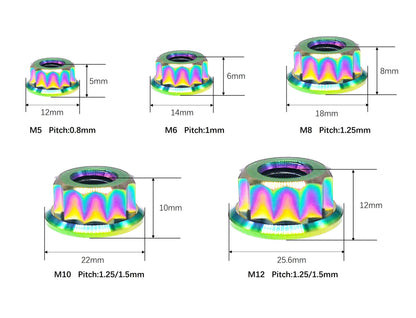

Size guide
M5 × 0.8 mm: 12 mm flange diameter, 5 mm height; use an 8 mm twelve-point socket
M6 × 1.0 mm: 14 mm flange diameter, 6 mm height; use a 10 mm twelve-point socket
M8 × 1.25 mm: 18 mm flange diameter, 8 mm height; use a 13 mm twelve-point socket
M10 × 1.25 or 1.5 mm: 22 mm flange diameter, 10 mm height; use a 15 mm twelve-point socket
M12 × 1.25 or 1.5 mm: 25.5 mm flange diameter, 12 mm height; use an 18 mm twelve-point socket

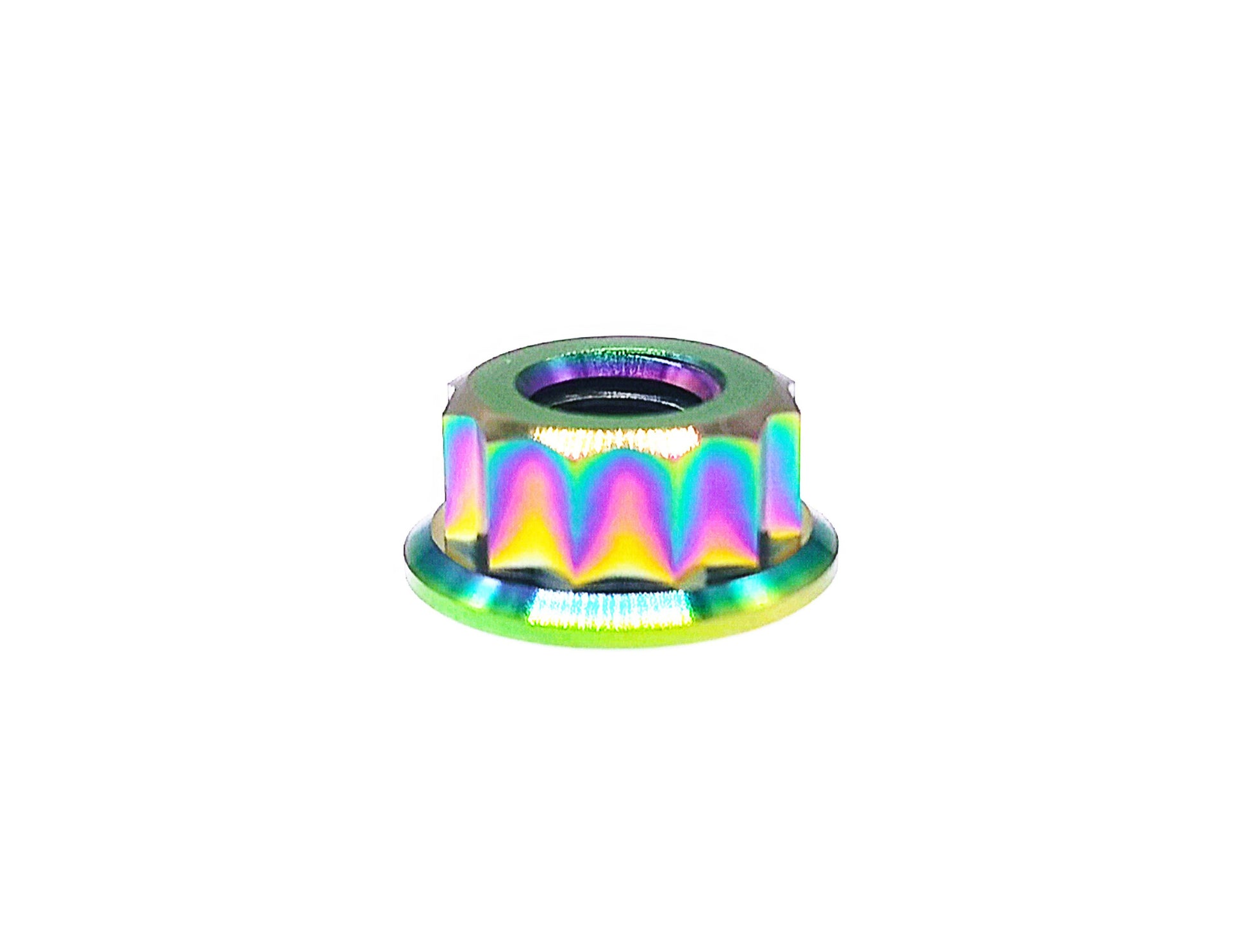

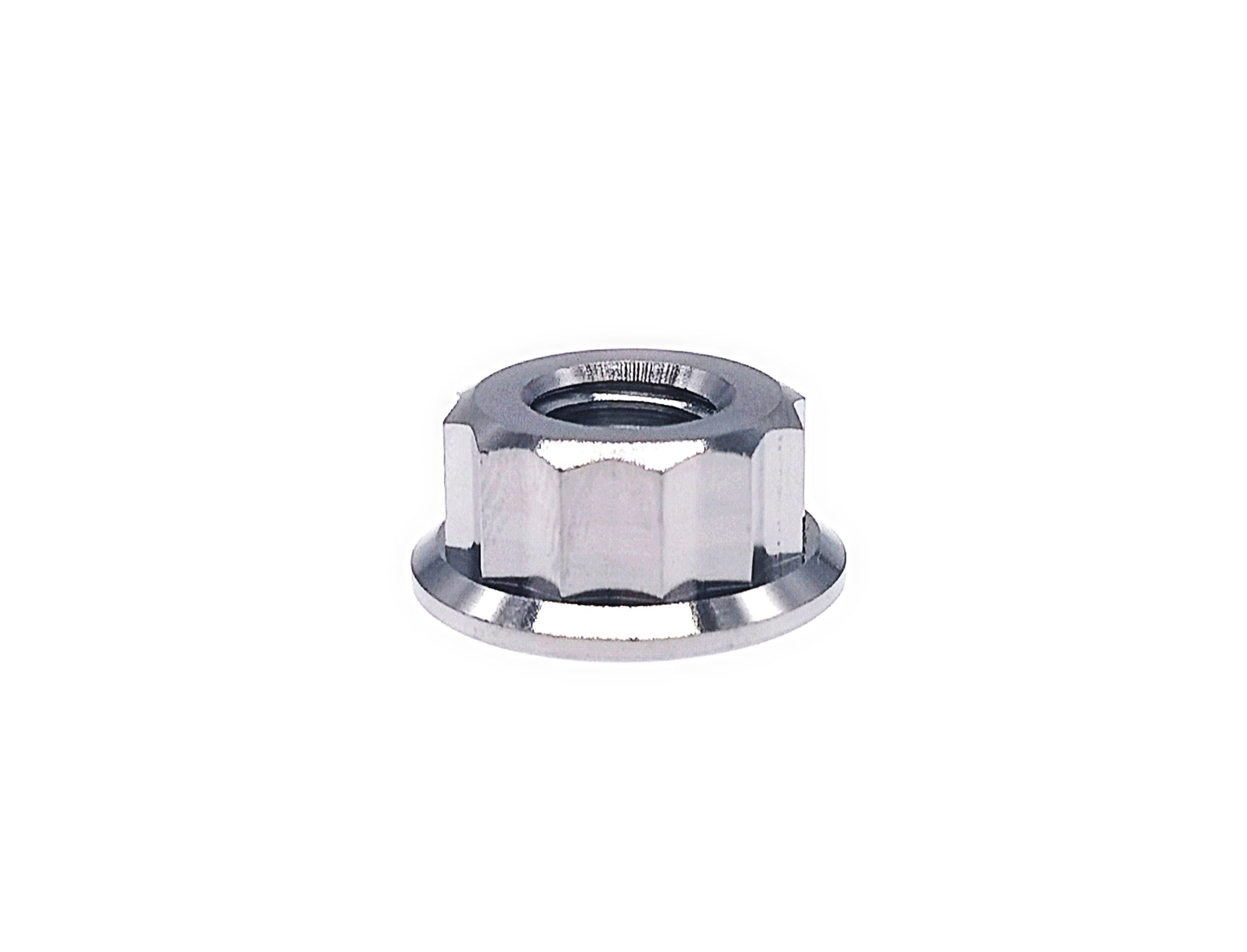

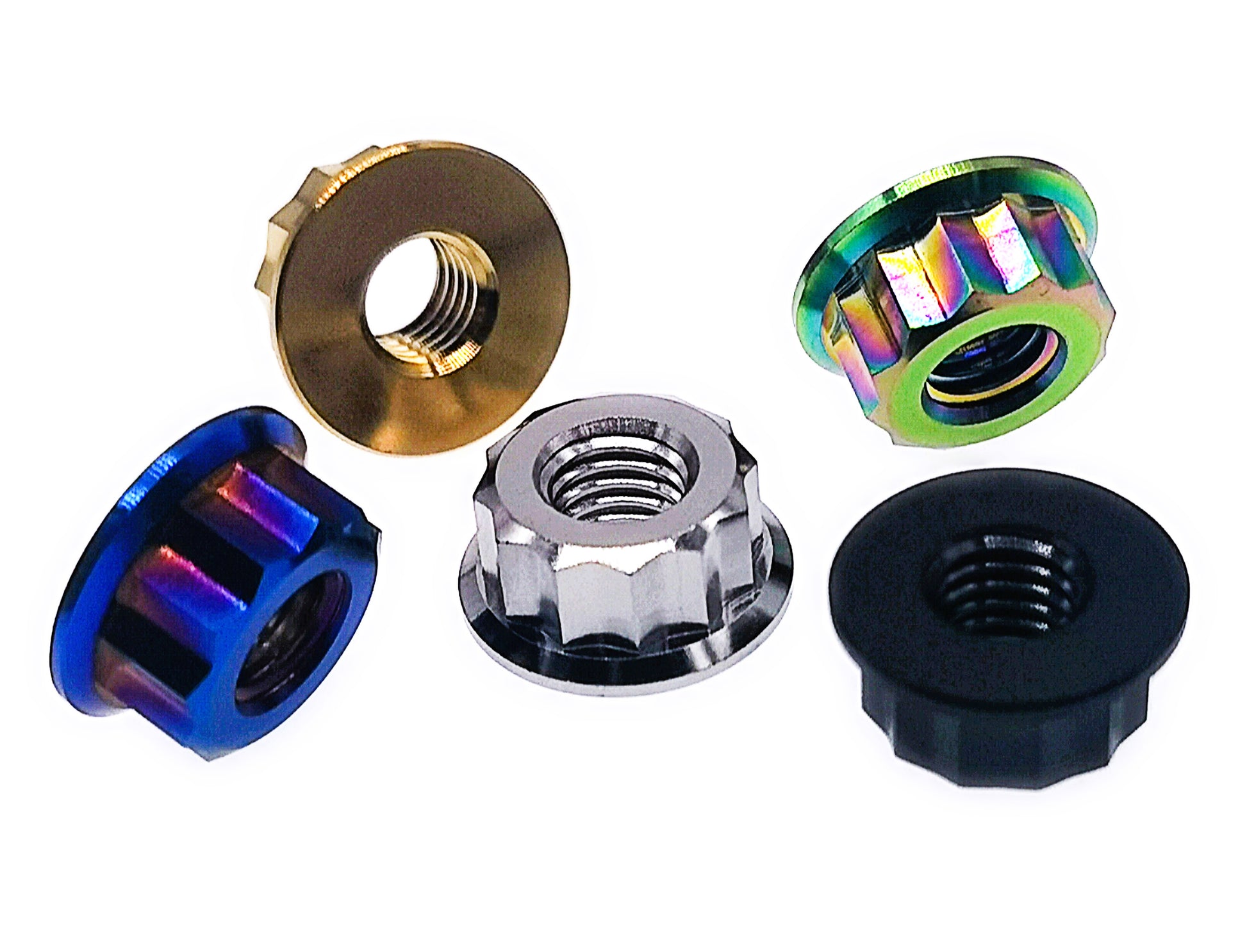

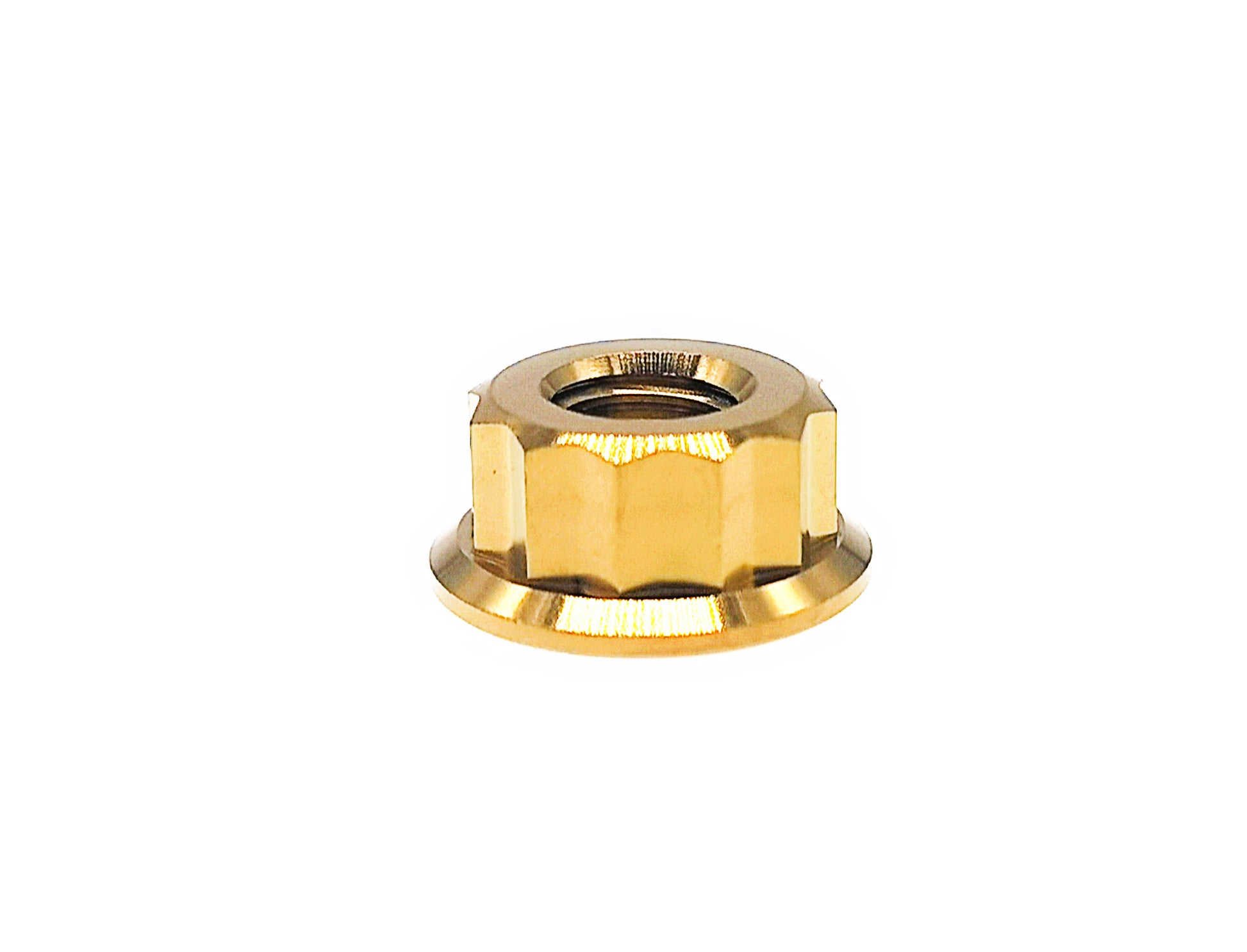

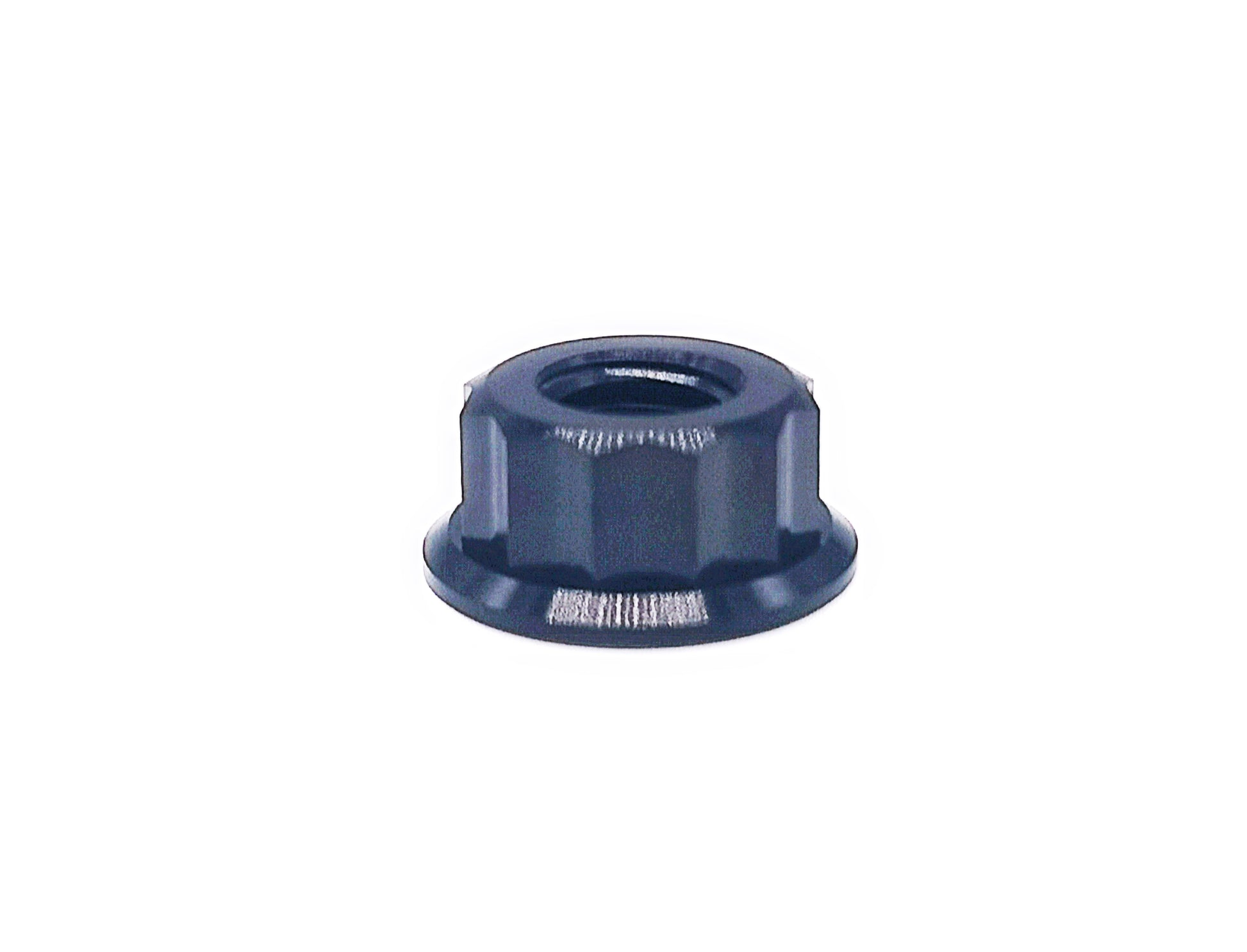

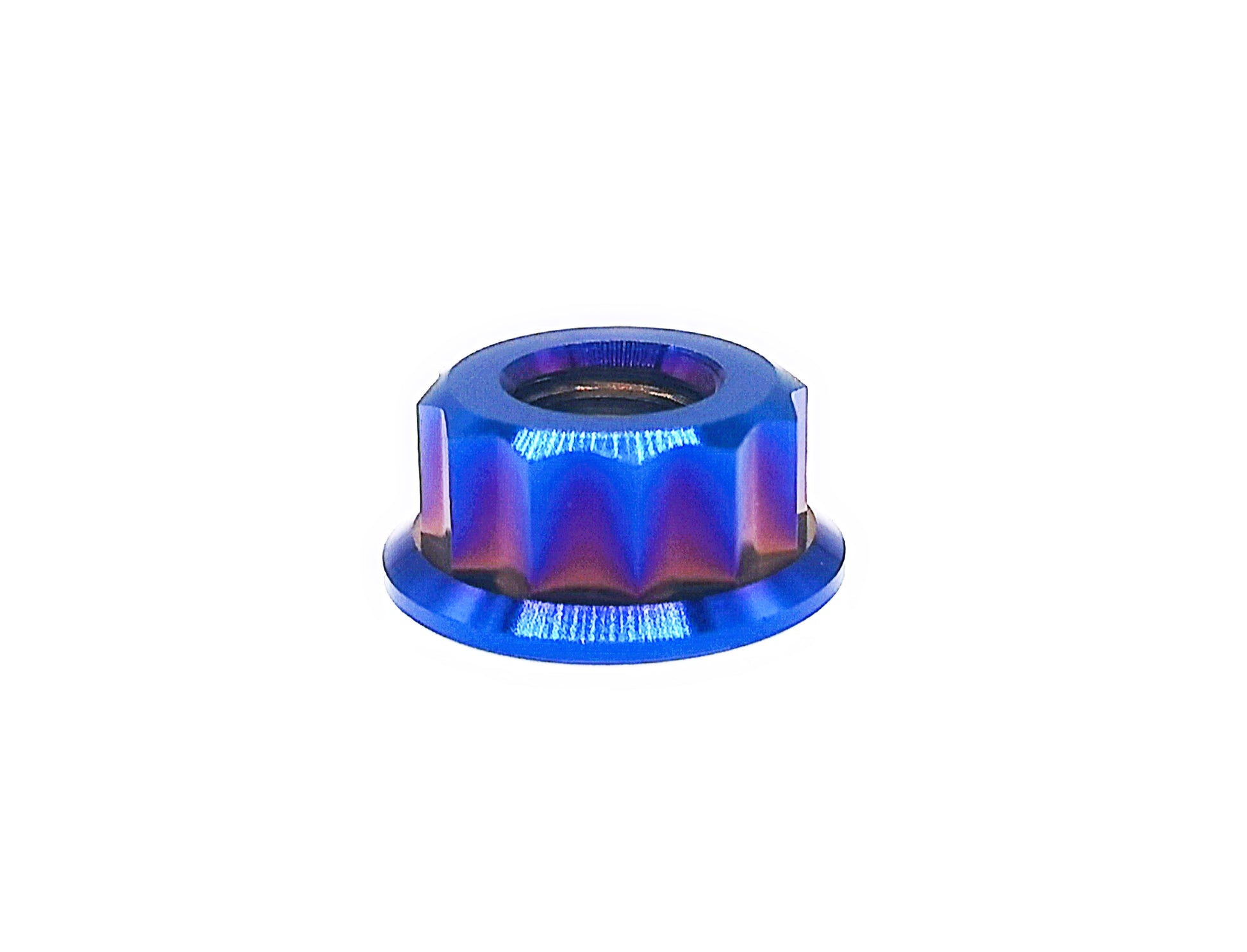

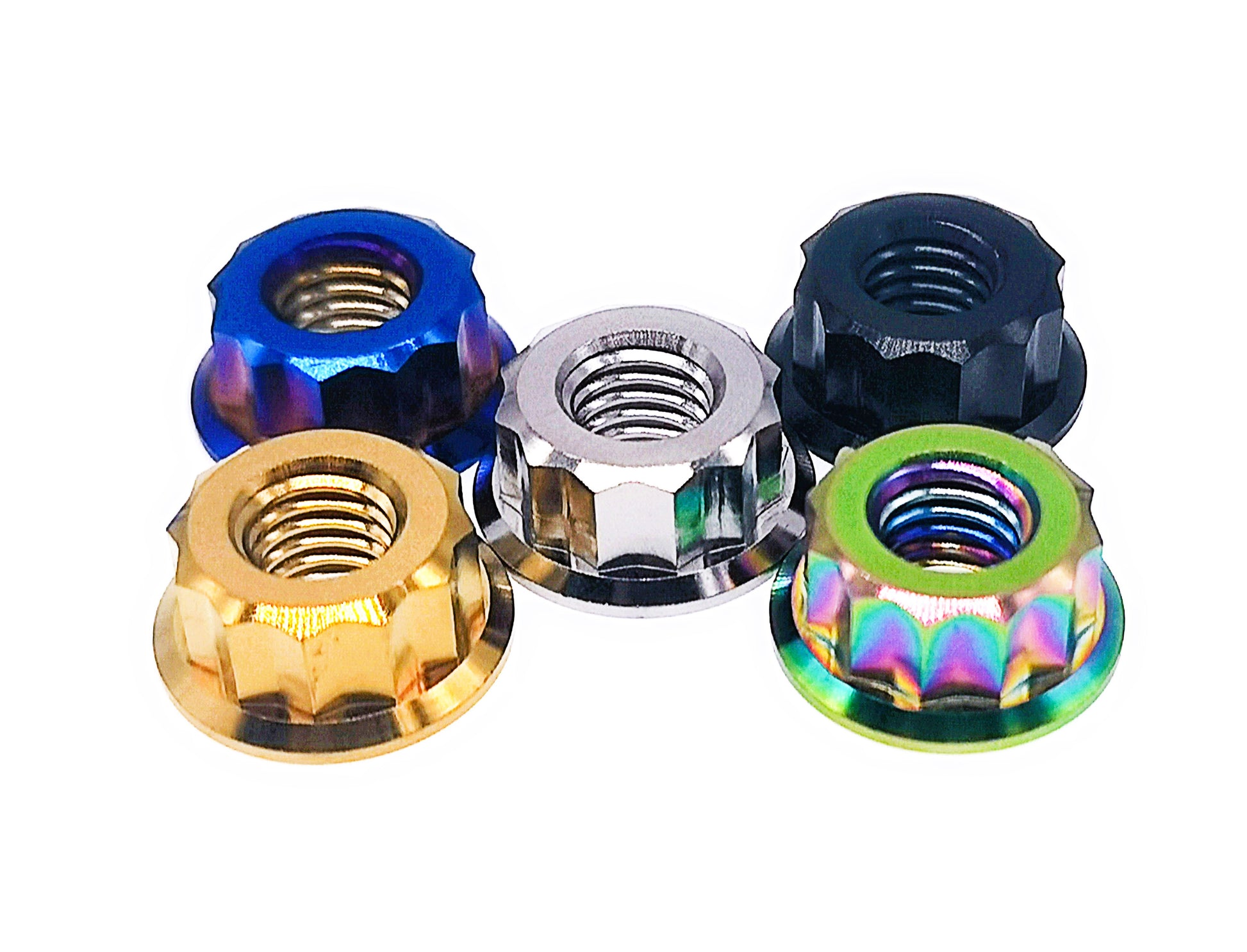

Listed colors: titanium, gold, rainbow, burn blue and black. Price is for one nut.
Before installation
Measure the original stud's diameter and pitch, and compare flange seating, available thread engagement and surrounding socket clearance. M10 and M12 each offer two pitches; do not force a mismatched nut. For wheels, brakes or other safety-critical joints, use the equipment maker's approved hardware and tightening procedure. For precise metric and imperial sizing techniques, explore our Fastener Metrology Guide.
FAQ
Will an M10 nut fit any M10 stud? No. Select the correct 1.25 or 1.5 mm pitch and confirm the original assembly requirements.
